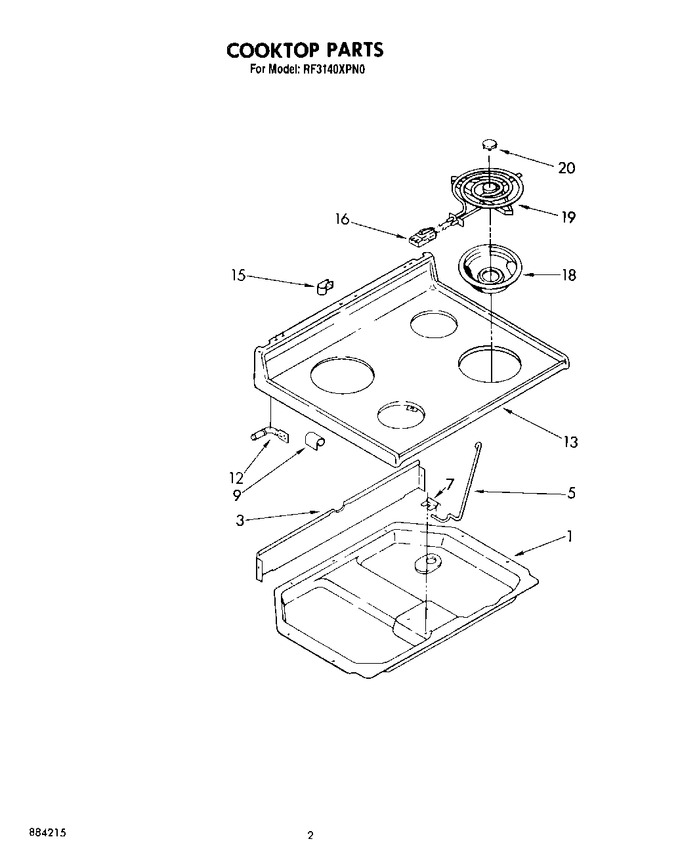

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307929		Burner Box		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
3	307973		Shield, Wiring		Appelez-nous	-
3	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
5	307968		Rod, Cooktop		Appelez-nous	-
7	307967		Retainer, Cooktop		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
9	307965		Bracket, Cooktop (2)		Appelez-nous	-
9	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	307871		Cooktop (almond)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
16	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
16	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
18	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 308540)			Immediately	$ 18.70
18	WPW10196406		Reflector Pan (6`` (2))   (Replaces: 308539)			Immediately	$ 12.05
19	314233		Unit, Surface 6`` L.f. & R.r.		Appelez-nous	-
19	WP660533		Unit, Surface 8`` R.f. & L.r.   (Replaces: 660530)			Immediately	$ 39.47
19	WP660533		(alt.)   (Replaces: 309185)			Immediately	$ 39.47
19	WP660533		(alt.) (includes Illus. 20)   (Replaces: 309216)			Immediately	$ 39.47
20	309195		Medallion (4)		Appelez-nous	-
