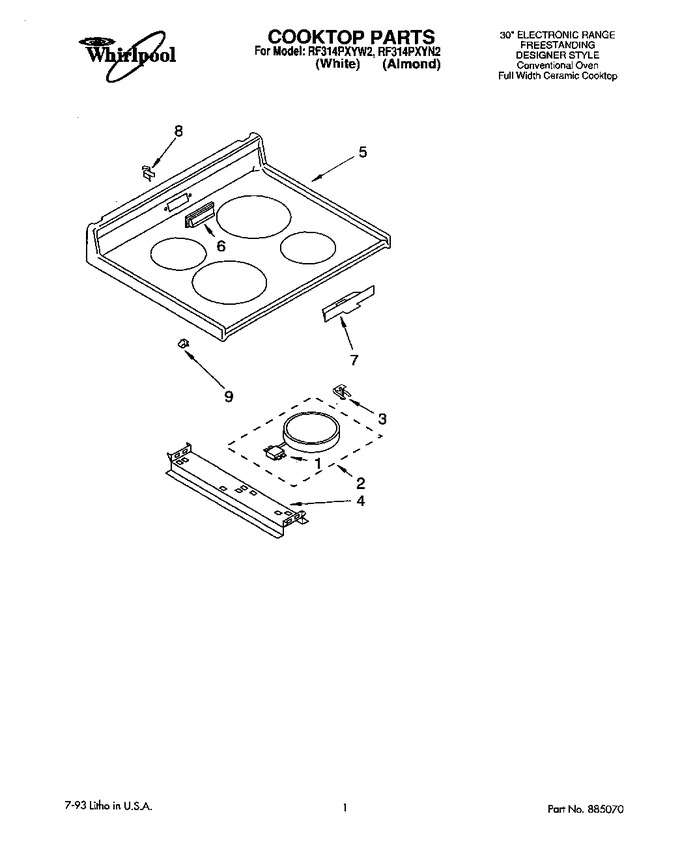

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Door And Drawer


04 - Unit


05 - Oven


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183972		Limiter, Temp. (200 Mm - (2))		Appelez-nous	-
1	3183974		Limiter, Temp. (230 Mm - (2))		Appelez-nous	-
2	3183648		Element, Surface (includes No.1) (230 Mm, 2100w (2))		Appelez-nous	-
2	3183647		Element, Surface (includes No.1) (200 Mm, 1700w (2))		Appelez-nous	-
3	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
3	3149191		Spring (8)				$ 9.45
4	98520		Screw (4)		Appelez-nous	-
4	3183087		Bracket, (2) Element Support		Appelez-nous	-
5	3184123		Cooktop (almond Mdl.)		Appelez-nous	-
5	3184122		Cooktop (white)		Appelez-nous	-
5	WP308685		Cooktop (screw (2))   (Replaces: 3367670)			Immediately	$ 7.08
6	3149012		Cover, Vent (almond)		Appelez-nous	-
6	3149011		Cover, Vent (white)		Appelez-nous	-
7	3183510		Shield, Probe		Appelez-nous	-
8	3149190		Clip, Mounting (2) (vent Cover)		Appelez-nous	-
9	311311		Clip, Wire		Appelez-nous	-
	LIT3187469		Use And Care Guide		Appelez-nous	-
	LIT3150400		Installation Instr (templet)		Appelez-nous	-
	LIT3187321		Instructions, Installation		Appelez-nous	-
	LIT3182486		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
