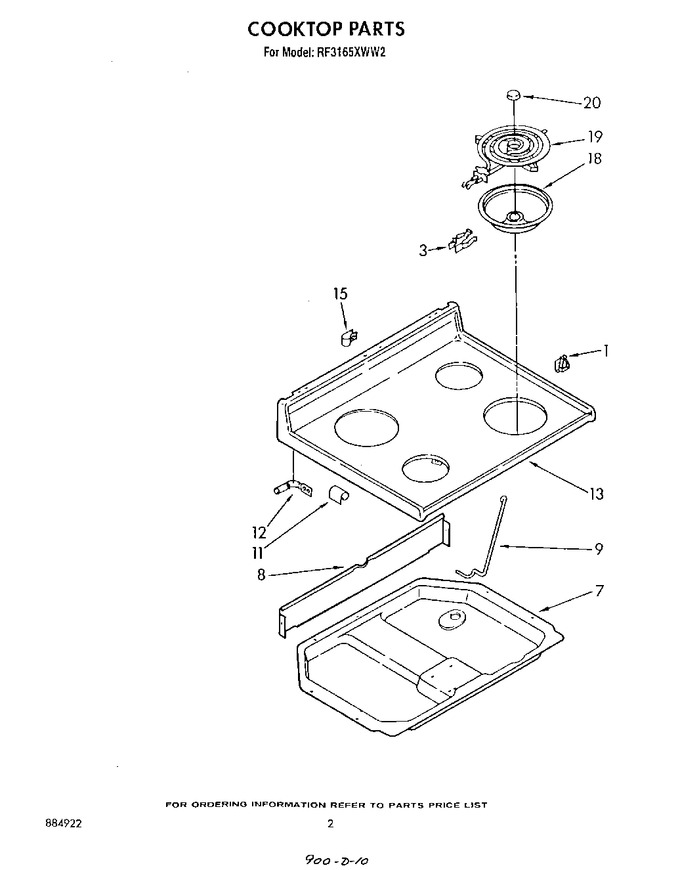

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	00487887		Screw   (Replaces: 487887)				$ 220.32
1	814103		Clip, Mtg. (4)   (Replaces: 3148790)				$ 9.02
1	814102		Nut				$ 5.27
3	330031		Clip, Retainer (4)   (Replaces: 312606)			Immediately	$ 14.48
3	WP313808		Screw, 6-32 X 9/32   (Replaces: 313808)				$ 6.84
7	3150186		Box, Burner		Appelez-nous	-
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	3148659		Rod, Cooktop (2)		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	3170985		Cooktop (gold)		Appelez-nous	-
13	3170982		Cooktop (almond)		Appelez-nous	-
13	3170981		Cooktop (white)		Appelez-nous	-
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
18	WPW10196406		Pan, Reflector (6`` (2))   (Replaces: 3150246)			Immediately	$ 12.05
18	W10196405RW		Pan, Reflector (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
19	WP660532		Unit, Surface (6`` Element (2))   (Replaces: 660532)			Immediately	$ 36.90
19	WP660533		Unit, Surface (8`` Element (2) (includes Illus. 20))   (Replaces: 660533)			Immediately	$ 39.47
20	309195		Medallion (4)		Appelez-nous	-
	LIT3149507		Cooking Guide		Appelez-nous	-
	LIT3147389		Instructions, Installation		Appelez-nous	-
	LIT884922		Repair Parts List		Appelez-nous	-
	LIT3150565		Use & Care Guide		Appelez-nous	-
