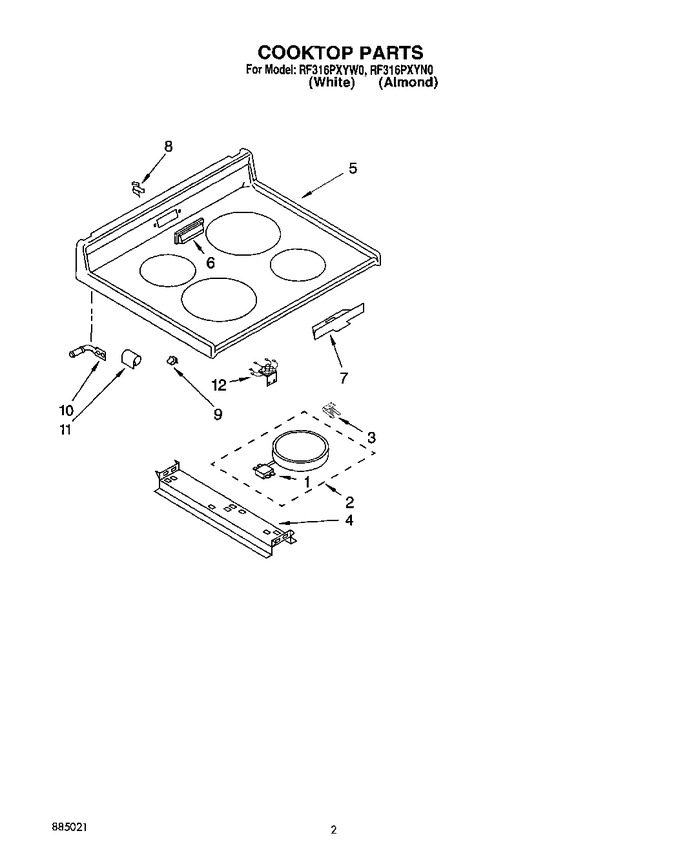

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183972		Limiter, Temp. (200 Mm - Rf)		Appelez-nous	-
1	3183974		Limiter, Temp. (230 Mm - Rr)		Appelez-nous	-
1	3183973		Limiter, Temp. (250 Mm - Lf)		Appelez-nous	-
1	3149129		Limiter, Temp. (180 Mm - Lr)		Appelez-nous	-
2	3183648		Element, Surface (includes No.1) (230 Mm - Rr)		Appelez-nous	-
2	3183646		Element, Surface (includes No.1) (180 Mm - Lr)		Appelez-nous	-
2	3183649		Element, Surface (includes No.1) (250 Mm - Lf)		Appelez-nous	-
2	3183647		Element, Surface (includes No.1) (200 Mm - Rf)		Appelez-nous	-
3	WP486754		Screw (8)   (Replaces: 246119)				$ 6.75
3	3149191		Spring (8)				$ 9.45
4	3148809		Bracket, (2) Element Support		Appelez-nous	-
4	98520		Screw (4)		Appelez-nous	-
5	3176528		Cooktop (almond)		Appelez-nous	-
5	3176527		Cooktop (white)		Appelez-nous	-
6	3149011		Cover, Vent (white)		Appelez-nous	-
6	3149012		Cover, Vent (almond)		Appelez-nous	-
7	3149262		Shield, Probe		Appelez-nous	-
8	3149190		Clip, Mounting		Appelez-nous	-
9	311311		Clip, Wire		Appelez-nous	-
10	307966		Pin, Hinge (2)		Appelez-nous	-
11	307965		Bracket, Hinge (2)		Appelez-nous	-
12	98520		Screw (2)		Appelez-nous	-
12	3169188		Hot Light Assembly		Appelez-nous	-
	LIT3181471		Wiring Diagram		Appelez-nous	-
	LIT3182687		Video, Ceran Cooktop		Appelez-nous	-
	LIT3169014		Use And Care Guide		Appelez-nous	-
	LIT3147395		Instructions, Installation		Appelez-nous	-
	LIT885021		Repair Parts List		Appelez-nous	-
