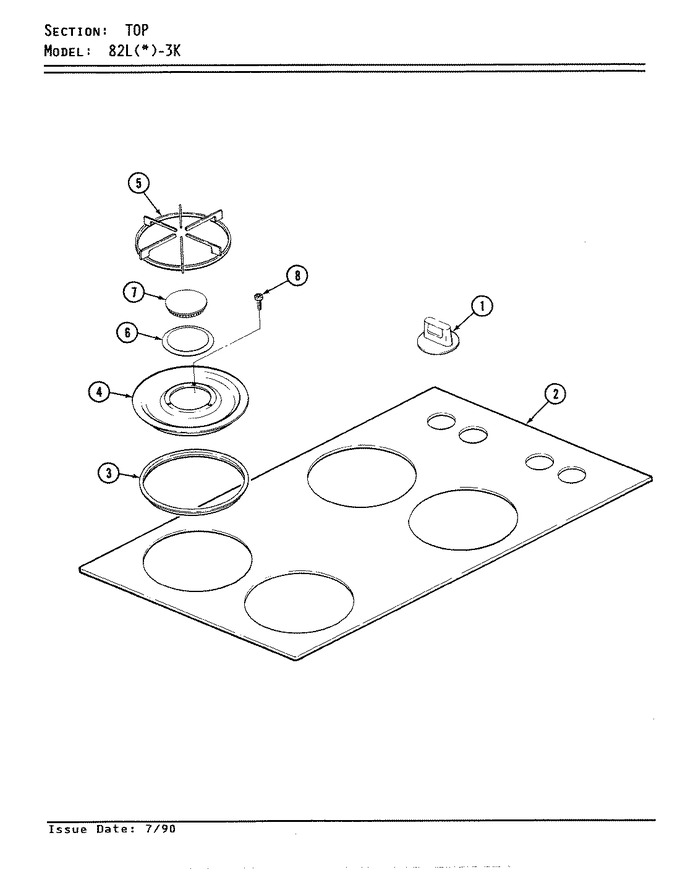

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7733P045-60 | Knob, Burner (black) | 01 |
|
$ 16.33 | ||||
| 2 | 7918P019-60 | Glass, Main Top (black)----na | 01 |
|
- | ||||
| 3 | 12400008 | Tape, Seal 112`` Long | 01 |
|
- | ||||
| 4 | 3424F001-90 | Bowl, Drip (blk) | 01 |
|
- | ||||
| 6 | 2014F001-90 | Ring, Black | 01 |
|
- | ||||
| 7 | 7504P007-60 | Cap, Surface Burner, Black | 01 |
|
- | ||||
| 8 | 12400021 | Tape Burner Box Seal 107`` | 01 |
|
- | ||||
| 8 | 7101P286-60 | Screw, Burner Mtg | 01 |
|
$ 7.00 | ||||
| 8 | 12400017 | Tape Kit (wht) Foam 112`` | 01 |
|
- | ||||
| 9 | 3801F192-45 | Bracket, Tie Down | 01 |
|
- | ||||
| 10 | 8112P041-60 | Manual, Use & Care | 01 |
|
- |
