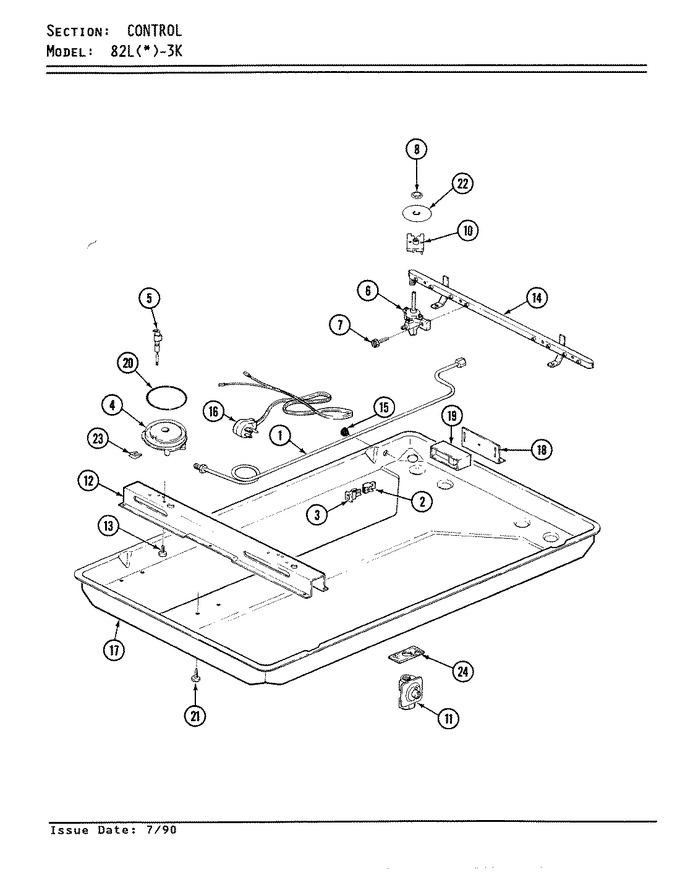

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5110P873-60		Wire, Igniter	01	Appelez-nous	-
1	5110P874-60		Wire, Igniter	01	Appelez-nous	-
1	7506P083-60		Tube, Top Burner	01	Appelez-nous	-
1	7506P084-60		Tubing, Top Burner	01	Appelez-nous	-
2	7401P017-60		Block, Disconnect (pin)	01	Appelez-nous	-
3	7401P018-60		Block	01	Appelez-nous	-
4	7505A155-60		Burner, Top Complete	01	Appelez-nous	-
5	7432P053-60		Igniter, Burner	01	Appelez-nous	-
6	7502P106-60		Valve, Top Burner	01	Appelez-nous	-
7	7101P043-60		Screw, Control Valve	01	Appelez-nous	-
8	7112P024-60		Clip	01	Appelez-nous	-
9	7724P004-60		Cover, Burner Valve	01	Appelez-nous	-
10	WP7403P190-60		Switch, Burner   (Replaces: 7403P190-60)	01			$ 118.82
11	7510P002-60		Regulator, Pressure	01	Appelez-nous	-
12	3807F368-45		Support, Top Burner	01	Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 7101P059-60)	01		Immediately	$ 6.85
14	7513P098-60		Pipe, Manifold	01	Appelez-nous	-
15	8007P003-60		Bushing, Snap	01	Appelez-nous	-
16	7402P014-60		Cord, Power	01	Appelez-nous	-
17	4011F162-23		Bottom, Burner Box	01	Appelez-nous	-
18	3801F205-45		Bracket, Module Support	01	Appelez-nous	-
18	3801F304-45		Bracket, Spark Module	01	Appelez-nous	-
18	3801F226-45		Bracket, Spark Module	03	Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P059-60)	01		Immediately	$ 6.85
19	7431P016-60		Module, Spark	01	Appelez-nous	-
19	12001596		Module, Spark   (Replaces: 7431P017-60)	03		Immediately	$ 85.93
20	7201P037-60		Gasket, Burner	01	Appelez-nous	-
21	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
22	7724P004-60		Cover, Burner Valve	01	Appelez-nous	-
22	8007P022-60		Bushing (wht)	09	Appelez-nous	-
23	7112P072-60		Clip	01	Appelez-nous	-
24	7208P019-60		Seal, Manifold Pipe	01	Appelez-nous	-
24	5415A026-60		Conversion Kit, Natural To Lp	01	Appelez-nous	-
