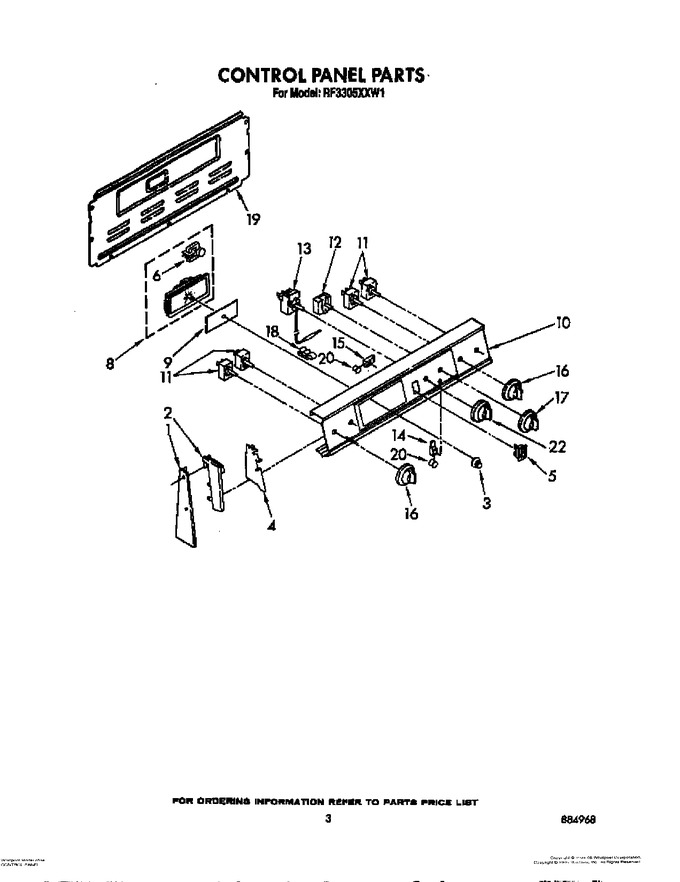

03 - Control Panel


04 - Optional, Oven


05 - Oven Parts


06 - Door And Drawer


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.04
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	313191		End Trim R.h.		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	3181677		End Cap R.h.		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
2	3181678		End Cap L.h.		Appelez-nous	-
3	313311		Knob, Spring		Appelez-nous	-
3	330206		Knob, Timer		Appelez-nous	-
4	WP965173		Screw, No.8x3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
4	313608		Shield (2)		Appelez-nous	-
5	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 80.53
6	313512		Motor, Timer		Appelez-nous	-
8	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 9.65
8	3149835		Timer, Clock		Appelez-nous	-
9	308441		Glass, Timer		Appelez-nous	-
10	3150467		Panel, Control (white)		Appelez-nous	-
10	3150468		Panel, Control (almond)		Appelez-nous	-
11	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 6.61
11	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 47.15
11	5500-287		Switch, Infinite (6`` Unit (2))   (Replaces: 3148951)			Immediately	$ 47.15
12	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 6.61
12	3150430		Switch, Selector (3 Position)				$ 66.71
13	311498		Thermostat, Oven (alt.)		Appelez-nous	-
13	310864		Thermostat, Oven (alt.)		Appelez-nous	-
13	661150		Thermostat, Oven		Appelez-nous	-
14	314031		Indicator Light (oven) (includes Illus. 20)				$ 62.88
15	3150662		Indicator Light (surface Unit) (includes Illus. 20)		Appelez-nous	-
16	WP3149983		Knob, Infinite (4)   (Replaces: 3149983)				$ 20.91
17	3149984		Knob, Selector		Appelez-nous	-
18	313570		Tube Clip		Appelez-nous	-
19	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
19	313195		Rear Cover Control Panel		Appelez-nous	-
20	313101		Lens, Amber (2)		Appelez-nous	-
22	3149987		Knob, Thermostat				$ 25.12
	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
