02 - Door And Drawer
03 - Control Panel
04 - Oven
05 - Literature And Optional
06 - Cooktop
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

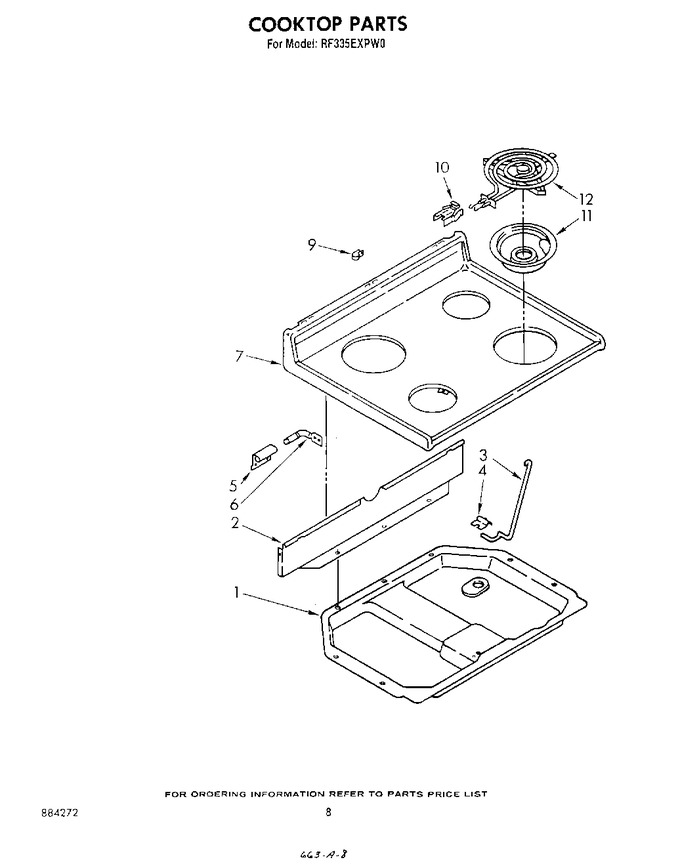

| 1 | 307929 | Burner Box |
|
- | |||||
| 1 | WP3390631 | Screw, 10a X 3/8 (6) (Replaces: 309112) |
|
$ 7.04 | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 2 | 307973 | Shield, Wiring |
|
- | |||||
| 3 | 307968 | Rod, Cooktop |
|
- | |||||
| 4 | WP3390631 | Screw, 10a X 3/8 (Replaces: 309112) |
|
$ 7.04 | |||||
| 4 | 307967 | Retainer, Cooktop |
|
- | |||||
| 5 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 5 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 6 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 6 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 307870 | Cooktop (white) |
|
- | |||||
| 7 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 9 | WP681414 | Screw, 10-16 X 1/2 (1) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 9 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 10 | 330031 | Receptacle Clip (4) (Replaces: 3147829) |
|
Immediately | $ 14.48 | ||||
| 10 | WP313808 | Screw, 6-32 X 1/4 (4) (Replaces: 313808) |
|
$ 6.84 | |||||
| 11 | WPW10196406 | Pan (6`` (3)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 11 | W10196405RW | Pan (8`` (1)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 12 | WP660532 | Unit, Surface 6`` L.f. & R.r. (240v) (Replaces: 660528) |
|
Immediately | $ 36.90 | ||||
| 12 | WP660532 | Unit, Surface 6`` L.f. & R.r. (240v) (alt.) (Replaces: 309249) |
|
Immediately | $ 36.90 | ||||
| 12 | WP660532 | Unit, Surface 6`` L.f. & R.r. (240v) (alt.) (Replaces: 309191) |
|
Immediately | $ 36.90 |
