Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3172219 Liner, Oven Door Appelez-nous -
1 307748 Screw (3) Appelez-nous -
1 WP355515 Screw (4)   (Replaces: 355515) Special Order $ 6.90

2 3185647 Screw (4) 8-18 X 3/8 Appelez-nous -
2 3148160 Retainer, Insulation Appelez-nous -
3 3148182 Bumper, Door (4) Appelez-nous -
4 3148186 Panel, Glass Appelez-nous -
5 3148228 Handle, Door Appelez-nous -
6 307748 Screw (2) Appelez-nous -
6 3148223 Door Top Appelez-nous -
7 WP355515 Screw (4)   (Replaces: 355515) Special Order $ 6.90

7 3148282 Clip, Handle (2) Special Order $ 8.69

8 3148235 Frame, Door Appelez-nous -
8 307748 Screw (3) Appelez-nous -
8 WP355515 Screw (4)   (Replaces: 355515) Special Order $ 6.90

14 3147951 Insulation Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

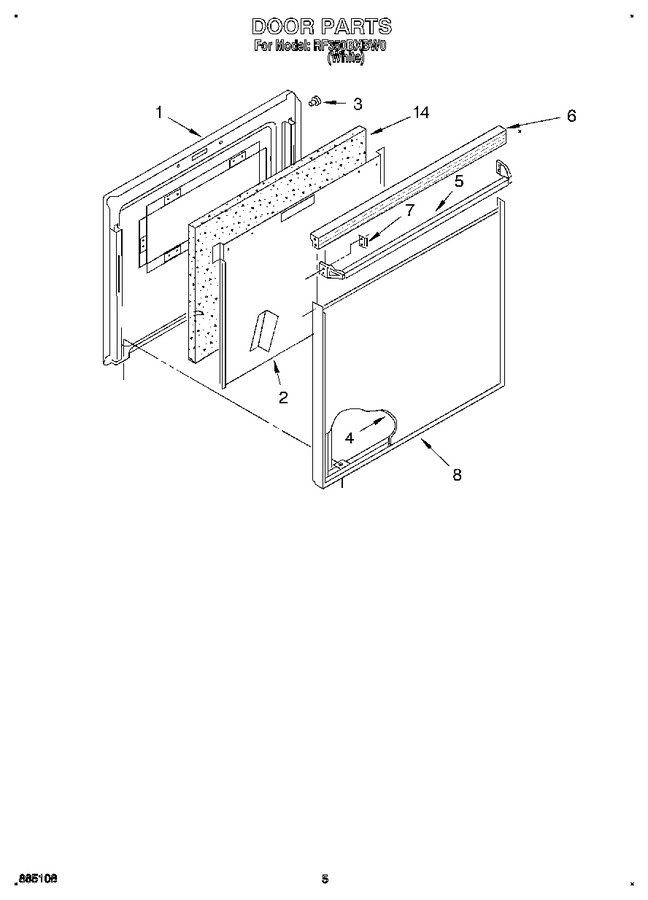

Diagram for RF350BXBW0
