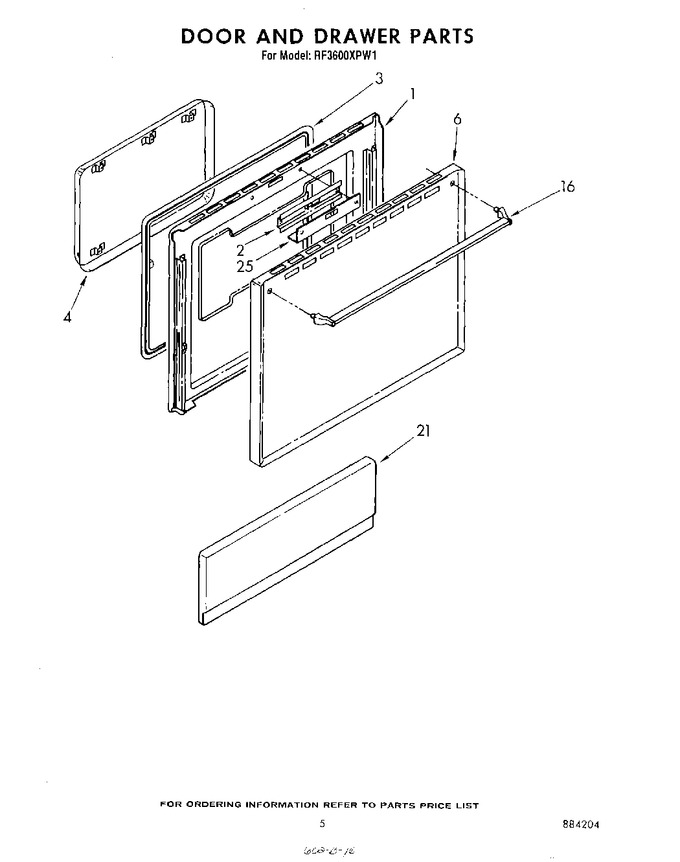

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329694		Liner, Door		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (9)		Appelez-nous	-
1	311056		Screw (2)		Appelez-nous	-
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
2	308033		Channel, Latch		Appelez-nous	-
2	311054		Screw (2)		Appelez-nous	-
3	311904		Seal, Fiberglass		Appelez-nous	-
4	328546		Panel, Inner		Appelez-nous	-
6	307897		Panel, Oven Door (almond)		Appelez-nous	-
6	313177		Panel, Oven Door (toast)		Appelez-nous	-
6	313178		Panel, Oven Door (platinum)		Appelez-nous	-
6	307889		Panel, Oven Door (white)		Appelez-nous	-
6	307895		Panel, Oven Door (harvest Gold)		Appelez-nous	-
16	WP308499		Palnut (2)   (Replaces: 308499)				$ 6.26
16	311563		Handle, Oven Door				$ 103.11
21	313171		Panel, Drawer (toast)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	313172		Panel, Drawer (platinum)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
25	311054		Screws (2)		Appelez-nous	-
25	310056		Shield, Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
