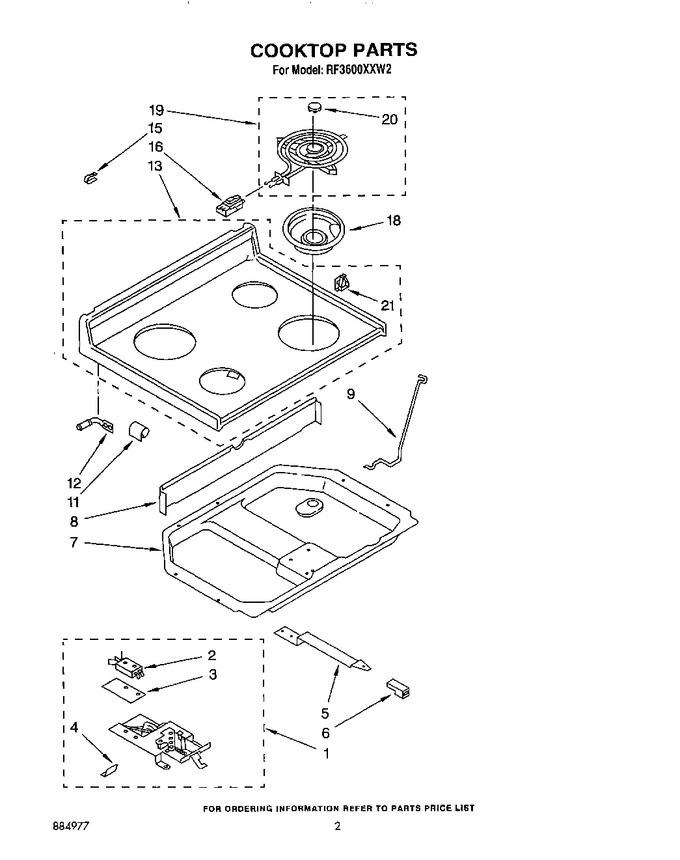

02 - Cooktop


03 - Control Panel


04 - Door And Drawer


05 - Unit, Lit/optional


06 - Oven


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	3171153		Latch & Switch Assembly		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw, 6 X 3/8b (2)		Appelez-nous	-
4	313035		Shield, Latch Terminal		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	3169186		Box, Burner		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	307973		Shield, Wiring		Appelez-nous	-
9	3148659		Rod, Cooktop		Appelez-nous	-
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
11	307965		Bracket (2)		Appelez-nous	-
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	3170990		Cooktop (almond)		Appelez-nous	-
13	WP681414		Cooktop (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
13	3170989		Cooktop (white)		Appelez-nous	-
15	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
15	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
16	330031		Receptacle, Clip (4)   (Replaces: 312606)			Immediately	$ 14.48
16	WP313808		Screw (4)   (Replaces: 313808)				$ 6.84
18	W10196405RW		Pan, Reflector (8`` (1))   (Replaces: 3150247)			Immediately	$ 18.70
18	WPW10196406		Pan, Reflector (6`` (3))   (Replaces: 3150246)			Immediately	$ 12.05
19	WP660533		Unit, Surface (8`` (1) (includes Illus. 20))   (Replaces: 660530)			Immediately	$ 39.47
19	WP660532		Unit, Surface 6`` (3)   (Replaces: 660528)			Immediately	$ 36.90
20	309195		Medallion (4)		Appelez-nous	-
21	00487887		Screw (4)   (Replaces: 487887)				$ 220.32
21	814103		Clip, Hold Down (4)   (Replaces: 3148790)				$ 9.02
21	814102		Nut (4)				$ 5.27
