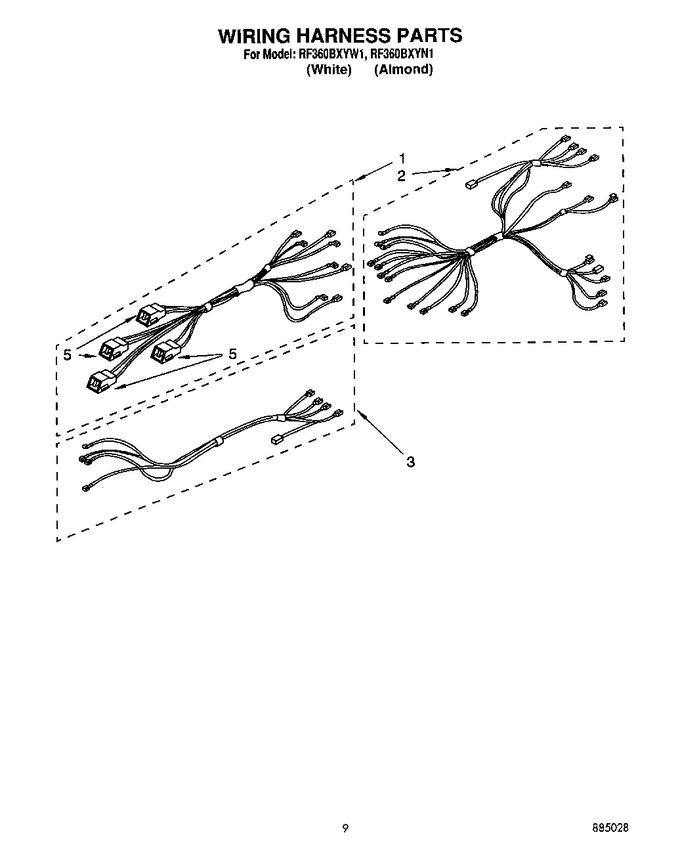

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3149881 | Wiring Harness (suface Unit) |
|
- | |||||
| 2 | 3169152 | Wiring Harness (oven) |
|
- | |||||
| 3 | 3183962 | Wiring Harness (lock Switch) |
|
- | |||||
| 5 | 330031 | Receptacle |
|
Immediately | $ 14.48 |
