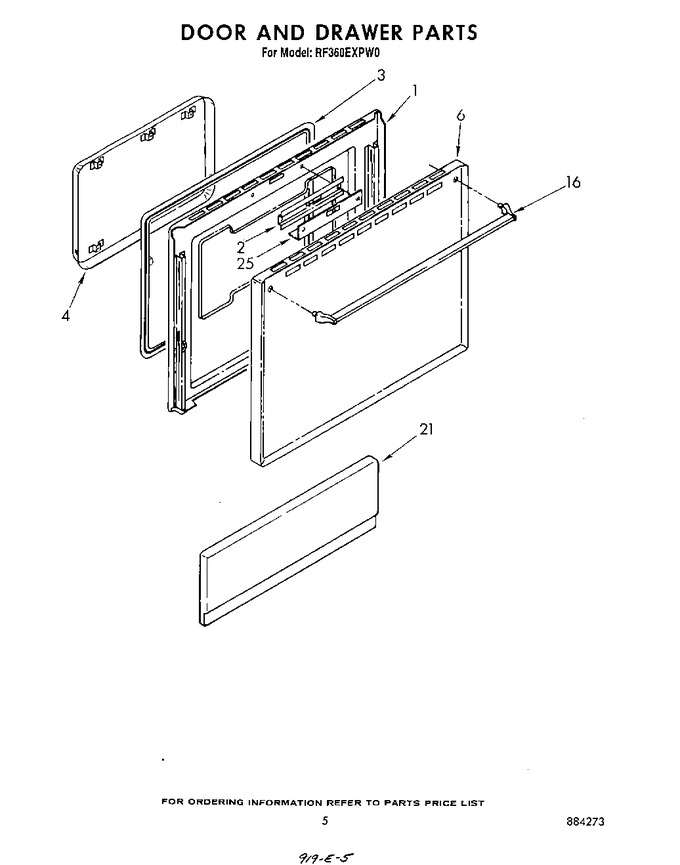

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329694 | Liner, Door |
|
- | |||||
| 1 | 307748 | Screw, 10a X 1/2 (9) |
|
- | |||||
| 1 | 311056 | Screw (2) |
|
- | |||||
| 1 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 6.81 | |||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 2 | 247326 | Screw (2) |
|
- | |||||
| 3 | 311904 | Seal, Fiberglass |
|
- | |||||
| 4 | 328546 | Panel, Inner |
|
- | |||||
| 6 | 307889 | Panel, Oven Door (white) |
|
- | |||||
| 16 | 311563 | Handle, Oven Door |
|
$ 103.11 | |||||
| 16 | WP308499 | Palnut (2) (Replaces: 308499) |
|
$ 6.26 | |||||
| 21 | 307935 | Panel Drawer (white) |
|
- | |||||
| 25 | 247326 | Screws (2) |
|
- | |||||
| 25 | 310056 | Shield, Insulation |
|
- |
