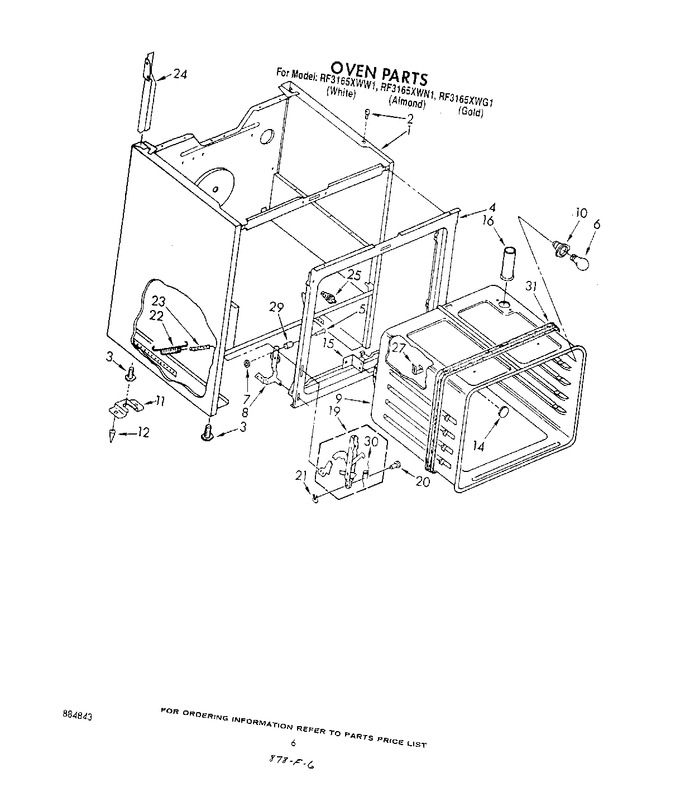

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330090		Main Chassis (almond)		Appelez-nous	-
1	330089		Main Chassis (gold)		Appelez-nous	-
1	WP681414		Main Chassis (screw 10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
1	330086		Main Chassis (white)		Appelez-nous	-
2	238614		Bumper, Cooktop (2)				$ 72.68
3	WPW10058460		Leg Leveling (4)   (Replaces: 312701)			Immediately	$ 7.07
4	3172204		Frame, Front		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (13)   (Replaces: 343641)			Immediately	$ 7.07
5	307985		Pin, Hinge				$ 29.54
6	8009		Bulb, Light   (Replaces: 311255)			Immediately	$ 16.80
7	308306		Pushnut		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
9	311056		Screw (3)		Appelez-nous	-
9	3172455		Oven (30`` Conv)		Appelez-nous	-
10	308043		Screw (2)		Appelez-nous	-
10	660556		Socket, Oven Light		Appelez-nous	-
11	8273888A		Bracket, Anchor   (Replaces: 3148603)				$ 27.96
11	3148604		Screw		Appelez-nous	-
12	3148605		Anchor, Plastic		Appelez-nous	-
14	257314		Plug Button		Appelez-nous	-
15	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
16	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
16	307960		Vent, Oven		Appelez-nous	-
19	329712		Channel, Arm (2)		Appelez-nous	-
20	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
21	307594		Ring, Retainer (2)		Appelez-nous	-
22	308127		Spring, Oven Door (2)				$ 11.75
23	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
24	WP681414		Support, Channel (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
24	313196		Support, Channel (l.h.)		Appelez-nous	-
24	313197		Support, Channel (r.h.)		Appelez-nous	-
25	310345		Switch, Door				$ 94.86
27	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
29	309111		Snubber, Door (2)		Appelez-nous	-
30	308207		Spring, Door Stop		Appelez-nous	-
31	309107		Seal, Rubber				$ 63.50
