View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Cooktop
03 - Control Panel
04 - Door And Drawer, Lit/optional
05 - Oven, Optional
06 - Oven (continued)
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

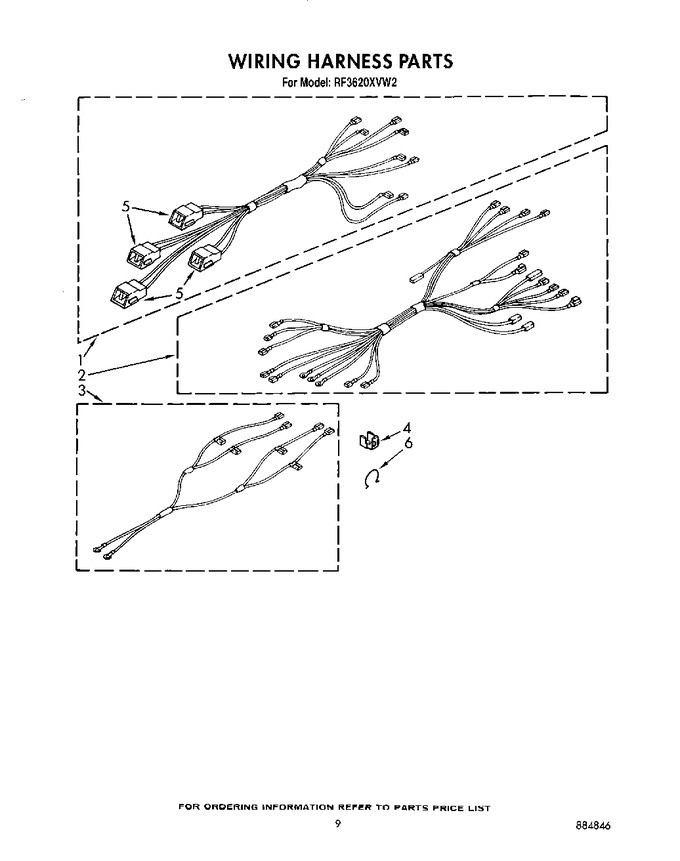

| 1 | 3149881 | Harness, Wire (suface Units) |
|
- | |||||
| 2 | 3148778 | Harness, Wire (oven) |
|
- | |||||
| 3 | 313147 | Harness, Wire (supply) |
|
- | |||||
| 3 | 313154 | Harness, Wire (oven Light) |
|
- | |||||
| 3 | 3148699 | Harness, Wire (lock Switch) |
|
- | |||||
| 3 | 3171162 | Harness, Wire (latch & Switch) |
|
- | |||||
| 4 | 3147832 | Adapter, Terminal |
|
- | |||||
| 5 | 330031 | Receptacle (4) |
|
Immediately | $ 14.48 | ||||
| 6 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 |
