SELECT A DIAGRAM

02 - Cook Top


03 - Control Panel

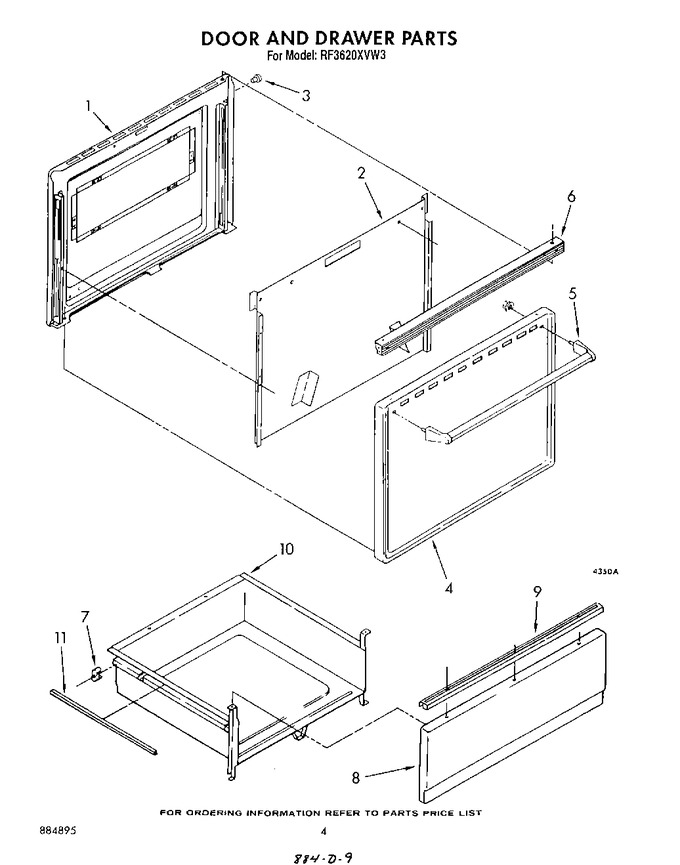

04 - Door And Drawer


05 - Oven , Lit/optional


06 - Section


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172219		Liner, Door		Appelez-nous	-
1	307748		Screw (9)		Appelez-nous	-
1	3148443		Screw (6)		Appelez-nous	-
2	3148160		Retainer, Insulation		Appelez-nous	-
2	3148443		Screw (4)		Appelez-nous	-
3	3148182		Bumper, Door (4)		Appelez-nous	-
4	3148210		Panel, Door (almond)		Appelez-nous	-
4	3148206		Panel, Door (white)		Appelez-nous	-
5	WP308499		Nut (2)   (Replaces: 308499)				$ 6.26
5	311563		Handle, Door				$ 103.11
6	3148181		Pushnut (2)		Appelez-nous	-
6	3148188		Frame, Door Top		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
7	307980		Glide, Rear (2)		Appelez-nous	-
8	WP488787		Panel Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 312566)				$ 9.52
8	307939		Panel, Drawer (almond)		Appelez-nous	-
8	307935		Panel Drawer (white)		Appelez-nous	-
9	WP488627		Screw 8-18 X 1/2 (2)   (Replaces: 313349)				$ 6.81
9	313337		Handle, Drawer		Appelez-nous	-
10	327887		Drawer, Utility		Appelez-nous	-
11	309329		Protector, Drawer (2)		Appelez-nous	-
	LIT3150571		Guide, Use & Care		Appelez-nous	-
	LIT3150551		Wiring Diagram		Appelez-nous	-
	LIT3147389		Instructions, Installation		Appelez-nous	-
	LIT884895		List, Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
