Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3149881 Harness, Wire (suface Units) Appelez-nous -
2 3148778 Harness, Wire (oven) Appelez-nous -
3 313147 Harness, Wire (supply) Appelez-nous -
4 313154 Harness, Wire (oven Light) Appelez-nous -
5 3148699 Harness, Wire (lock Switch) Appelez-nous -
6 3147832 Adapter, Terminal Appelez-nous -
7 330031 Receptacle (4) In-Stock Immediately $ 14.48

8 16515 Clip, Harness   (Replaces: 313438) Special Order $ 17.60


    View Diagram in Separate Window     Print Icon   Print Part List

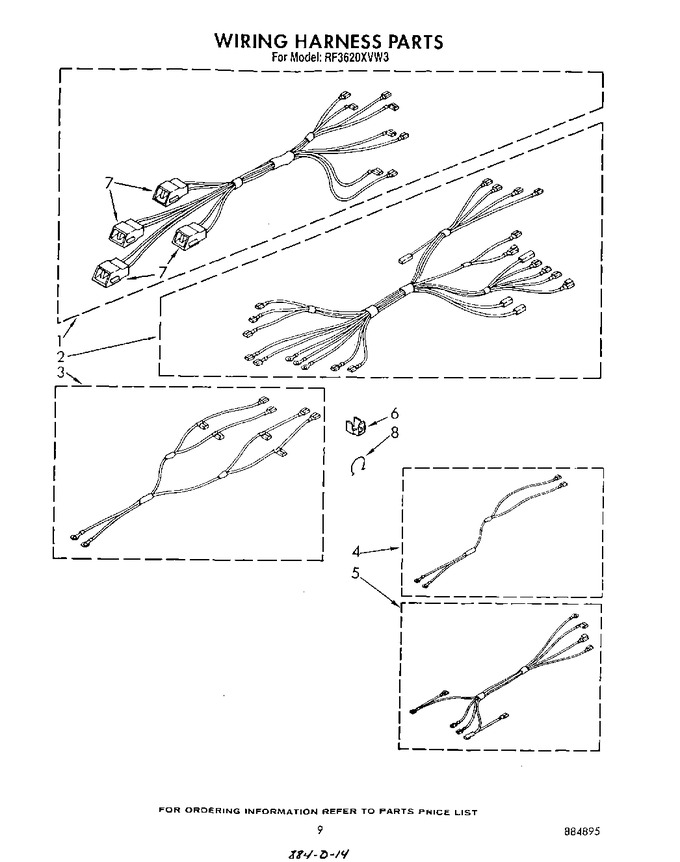

Diagram for RF3620XVW3
