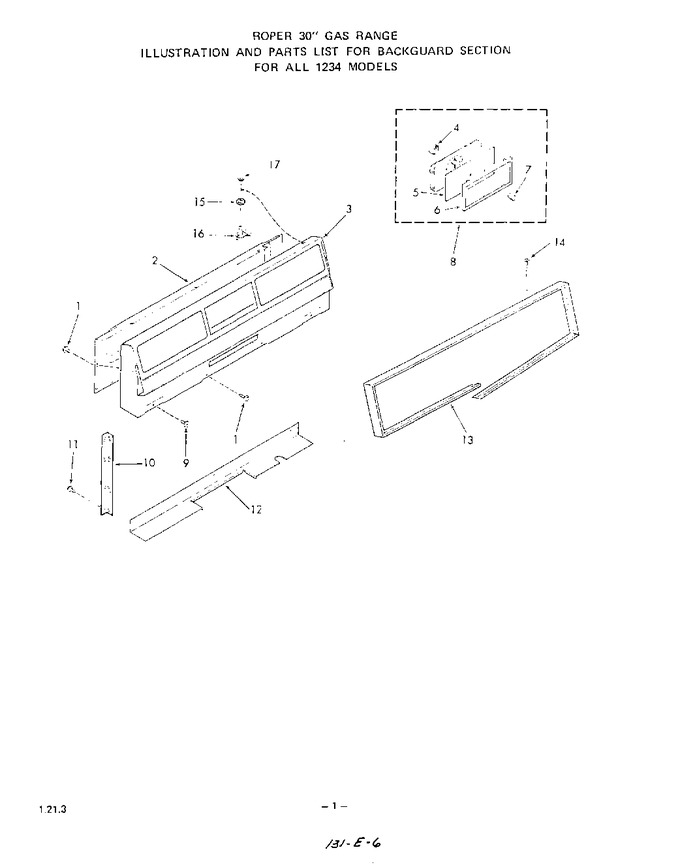

01 - Backguard


02 - Main Top


03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie Kit 1006504 , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
2	320767		Wire Cover-backguard		Appelez-nous	-
3	325634		Crosstie		Appelez-nous	-
4	283296		Clock Motor		Appelez-nous	-
5	284183		Clock Glass		Appelez-nous	-
6	285930		Clock Bezel				$ 67.10
7	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
8	315261		Clock W/4 Hr. Timer (inc`s. Keys 4,5,6 & 7)		Appelez-nous	-
9	321337		Screw 10-32x7/16``		Appelez-nous	-
10	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
11	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
12	296569		Bottom-backguard Wire Cover		Appelez-nous	-
13	310603		Bezel-backguard		Appelez-nous	-
14	295268		Screw 6-32x3/8``		Appelez-nous	-
15	236129		Pal Nut 3/8-27		Appelez-nous	-
16	298793		Push Switch-oven Light		Appelez-nous	-
17	87403		Knurled Nut		Appelez-nous	-
