SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor

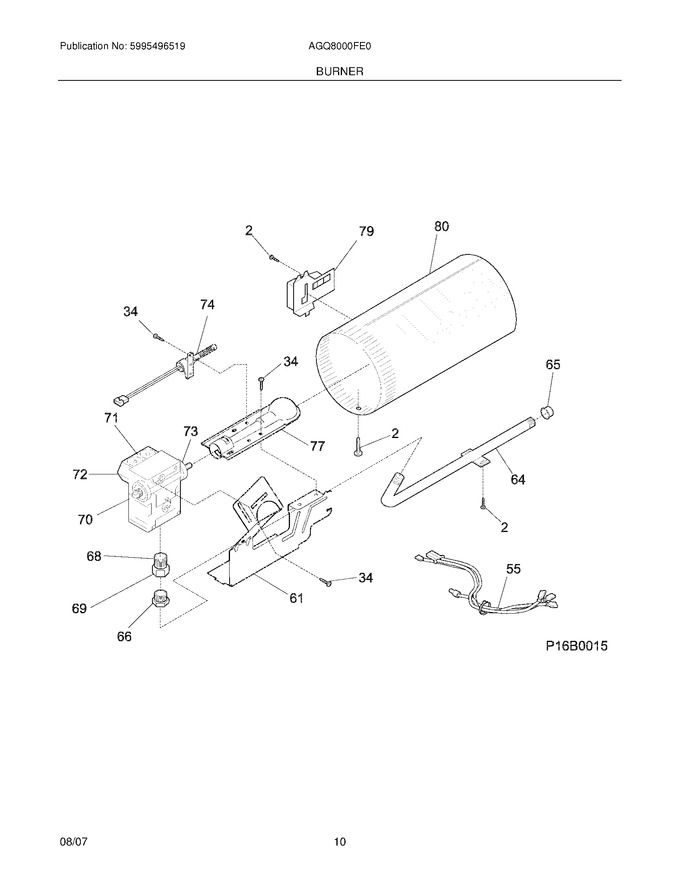

11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
61	134122000		Bracket,burner Mtg				$ 58.80
64	134144900		Pipe,gas ,right Angle		Appelez-nous	-
65	08015112		Cap-pipe		Appelez-nous	-
66	134128700		Bushing,coupler				$ 13.39
68	134185100		Tail Piece,coupling		Appelez-nous	-
70	5303207409		Valve Gas				$ 433.76
71	5303307291		Coil-secondary		Appelez-nous	-
72	5303307292		Coil-booster		Appelez-nous	-
73	5303207410		Orifice,natural Gas ,size 44				$ 80.09
F55	134389600		Wiring Harness,gas Valve		Appelez-nous	-
F69	5308015194		Union,hex Nut				$ 13.72
F74	5304517325		Igniter Assy   (Replaces: 134192000)				$ 229.55
F77	134197700		Burner,gas				$ 64.49
F79	5303281135		Sensor,radiant			Immediately	$ 102.06
F80	134200801		Tube,burner ,riveted		Appelez-nous	-
NI	134315100		Lp Conversion Kit,natural To Lp		Appelez-nous	-
