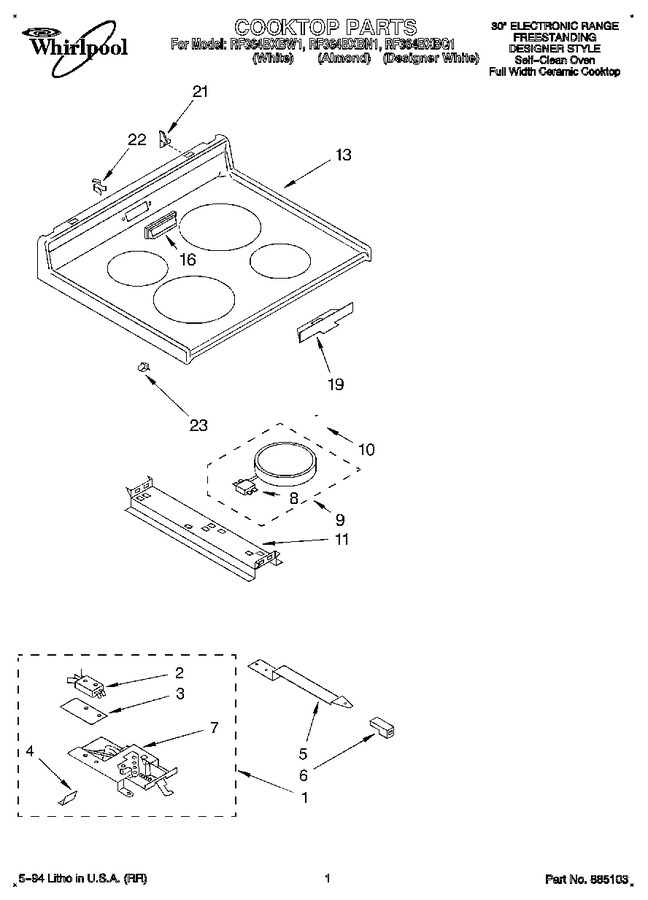

01 - Cooktop, Literature
02 - Control Panel
03 - Door And Drawer
04 - Oven
05 - Unit
06 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 3171153 | Latch Asm Complete |
|
- | |||||
| 2 | 308185 | Safety Switch |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 309258 | Screw (2) |
|
- | |||||
| 4 | 313035 | Shield, Terminal |
|
- | |||||
| 5 | 308422 | Screw (2) |
|
- | |||||
| 5 | 3169081 | Handle, Latch |
|
- | |||||
| 5 | 3150175 | Designer White Mdl |
|
- | |||||
| 6 | 3150174 | Knob, Latch (designer White Mdl.) |
|
- | |||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 6 | 155023 | Screw, |
|
Immediately | $ 7.91 | ||||
| 7 | 3148668 | Latch Mechanism |
|
- | |||||
| 8 | 3169340 | Limiter, Temp. (2100w, Lf-rr) |
|
- | |||||
| 8 | 3169339 | Limiter, Temp. (1700w, Rf-lr) |
|
- | |||||
| 9 | 3183648 | Element, Surface (includes No.8) (2100w, Lf-rr) |
|
- | |||||
| 9 | 3183647 | Element, Surface (includes No.8) (1700w, Rf-lr) |
|
- | |||||
| 10 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 10 | 3149191 | Spring (8) |
|
$ 9.45 | |||||
| 11 | 3183087 | Bracket, Element Support |
|
- | |||||
| 11 | 3149333 | Screw (4) |
|
$ 5.33 | |||||
| 13 | WP308685 | Cooktop (screw (2)) (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 13 | 3184122 | Cooktop (white) |
|
- | |||||
| 13 | 3184123 | Cooktop (almond Mdl.) |
|
- | |||||
| 13 | 3184124 | Cooktop (designer White) |
|
- | |||||
| 16 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 16 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 19 | 3183510 | Shield, Probe |
|
- | |||||
| 21 | WP681414 | Bracket, Cooktop (screw, 10x1/2 (2)) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 21 | 3169295 | Bracket, Cooktop (left) |
|
- | |||||
| 21 | 3169294 | Bracket, Cooktop (right) |
|
- | |||||
| 22 | 3149190 | Clip, Mounting (2) (vent Cover) |
|
- | |||||
| 23 | 311311 | Clip, Wire |
|
- | |||||
| LIT3187321 | Instructions, Installation |
|
- | ||||||
| LIT3150400 | Installation Instr (templet) |
|
- | ||||||
| LIT3183629 | Wiring Diagram |
|
- | ||||||
| LIT3187474 | Use And Care Guide |
|
- |
