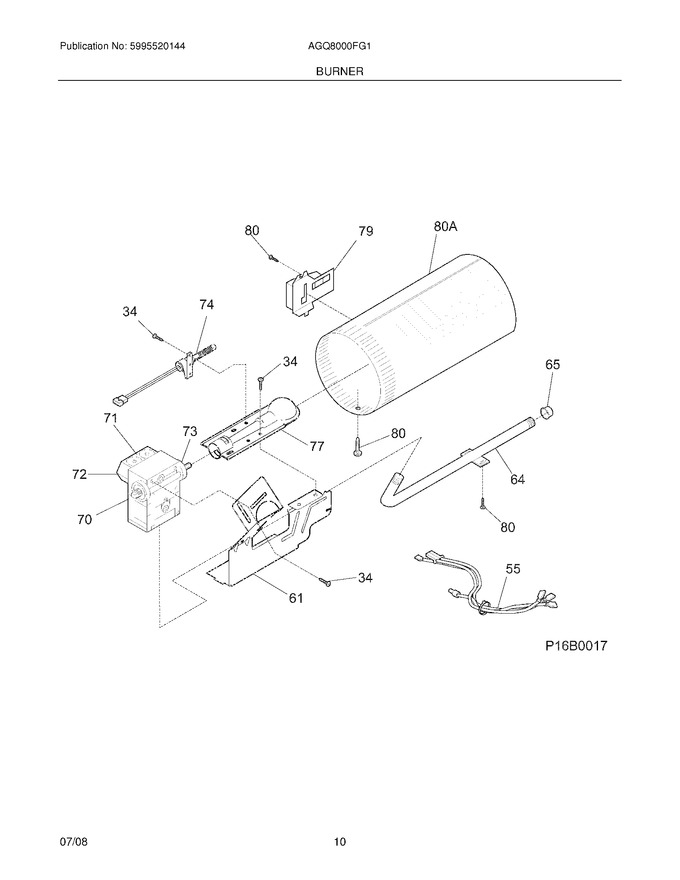

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.375 |
|
$ 3.36 | |||||
| 61 | 134122000 | Bracket,burner Mtg |
|
$ 58.80 | |||||
| 64 | 137011800 | Pipe,gas ,right Angle |
|
$ 51.87 | |||||
| 65 | 08015112 | Cap-pipe |
|
- | |||||
| 80 | 131168200 | Screw,10-16ab X 0.375 (Replaces: 134547800) |
|
Immediately | $ 14.18 | ||||
| F55 | 134389600 | Wiring Harness,gas Valve |
|
- | |||||
| F70 | 5303207409 | Valve Gas |
|
$ 433.76 | |||||
| F71 | 5303307291 | Coil-secondary |
|
- | |||||
| F72 | 5303307292 | Coil-booster |
|
- | |||||
| F73 | 5303207410 | Orifice,natural Gas ,size 44 |
|
$ 80.09 | |||||
| F74 | 5304517325 | Igniter Assy (Replaces: 134192000) |
|
$ 229.55 | |||||
| F77 | 134197700 | Burner,gas |
|
$ 64.49 | |||||
| F79 | 5303281135 | Sensor,radiant |
|
Immediately | $ 102.06 | ||||
| F80A | 134200801 | Tube,burner ,riveted |
|
- |
