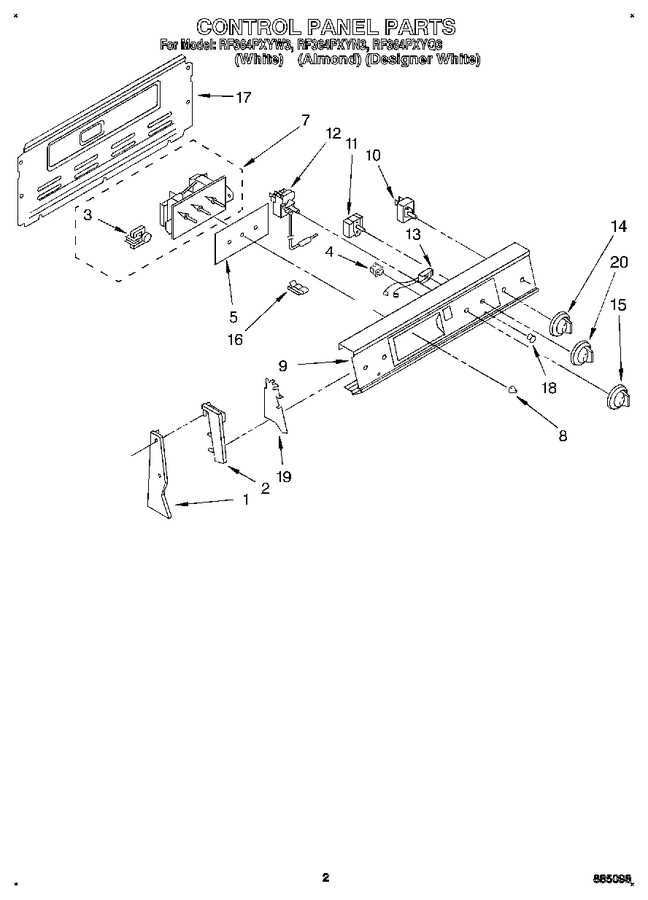

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183090		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	3183091		End Trim L.h.		Appelez-nous	-
2	3150441		End Cap R.h.		Appelez-nous	-
2	313230		End Cap Designer White Mdl		Appelez-nous	-
2	3150442		End Cap L.h.		Appelez-nous	-
2	313231		End Cap Designer Model Mdl		Appelez-nous	-
2	254225		Screw, 8bt X 1/4 (4)		Appelez-nous	-
3	309822		Motor, Timer		Appelez-nous	-
4	3149360		Designer White Mdl				$ 89.01
4	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 80.53
5	313513		Glass, Timer		Appelez-nous	-
7	661458		Timer, Control		Appelez-nous	-
7	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 9.65
7	3169272		Designer White Mdl		Appelez-nous	-
8	3169182		Knob (3) (timer)		Appelez-nous	-
8	3169184		Designer White Mdl		Appelez-nous	-
9	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
9	3183817		Panel, Control		Appelez-nous	-
9	3183818		Designer White Mdl		Appelez-nous	-
10	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 47.15
10	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	WP3148952		Switch, Infinite (6`` Unit (2))   (Replaces: 3148952)			Immediately	$ 62.56
11	WP965173		Screw (2)   (Replaces: 3150344)			Immediately	$ 9.65
11	3148419		Switch, Selector (5 Position)		Appelez-nous	-
12	3185625		Thermostat, 0ven		Appelez-nous	-
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
13	314031		Indicator Light (oven, (1))				$ 62.88
13	3148719		Indicator Light (light, (1))		Appelez-nous	-
13	3150662		Indicator Light (surface Unit, (1))		Appelez-nous	-
14	3183118		Knob, Control (4) (infinite Switch)				$ 23.04
14	3183117		Designer White Mdl				$ 24.34
15	3183104		Designer White Mdl		Appelez-nous	-
15	3183103		Knob, Control (thermostat)		Appelez-nous	-
16	313570		Tube Clip		Appelez-nous	-
17	WP681414		Screw, 10-16 X 1/2 (8)   (Replaces: 343641)			Immediately	$ 7.07
17	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313101		Lens, Amber (3)		Appelez-nous	-
19	313608		Shield, Glass (2)		Appelez-nous	-
19	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
20	3183115		Knob, Control (selector)				$ 23.60
20	3183116		Designer White Mdl		Appelez-nous	-
