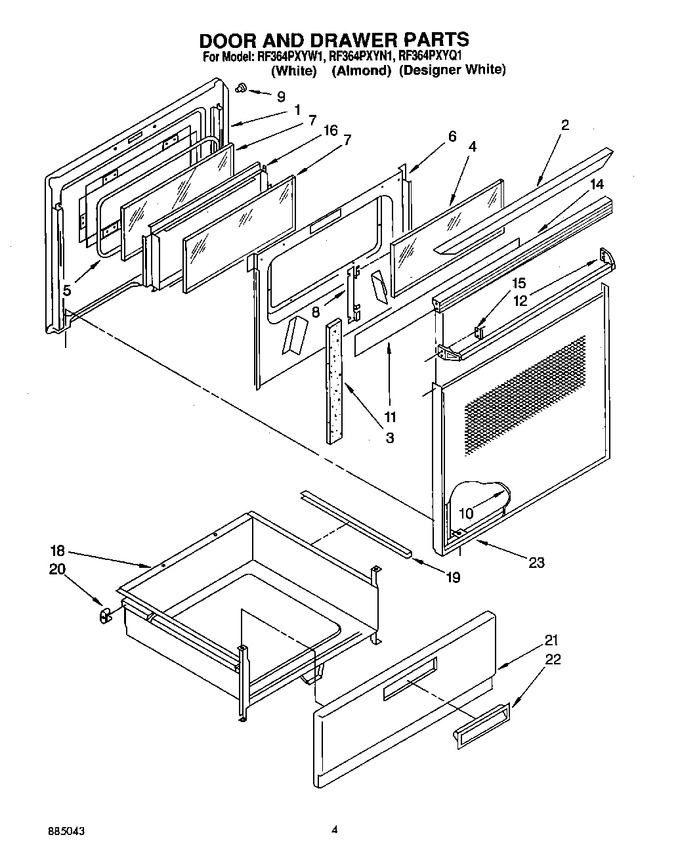

03 - Door And Drawer


04 - Unit


05 - Oven


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
1	3148443		Screw (6)		Appelez-nous	-
2	3181363		Cap, Top Designer Mdl. Only		Appelez-nous	-
3	3148441		Seal, Fiberglass (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	3148443		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3149049		Glass, Panel (white)		Appelez-nous	-
11	3169191		Foil, Door		Appelez-nous	-
12	3149354		Handle, Door (platinum)		Appelez-nous	-
12	3148228		Handle, Door (black)		Appelez-nous	-
12	WP355515		Handle, Door (screw (4))   (Replaces: 355515)				$ 6.90
14	3148223		Top, Door (white-almond)		Appelez-nous	-
14	WP308685		Top, Door (screw)   (Replaces: 3182346)			Immediately	$ 7.08
14	3149355		Top, Door (designer White)		Appelez-nous	-
14	3182345		Top, Door (screw)		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 8-18 X 1/2   (Replaces: 3393008)			Immediately	$ 7.08
20	307980		Glide, Rear (2)		Appelez-nous	-
21	3150676		Panel, Drawer (white)		Appelez-nous	-
21	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 313349)				$ 6.81
21	3150677		Panel, Drawer (almond)		Appelez-nous	-
22	3150613		Handle, Snap-in (almond)		Appelez-nous	-
22	3150612		Handle, Snap-in (white)		Appelez-nous	-
23	3148235		Frame, Door		Appelez-nous	-
23	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
23	307748		Screw (5)		Appelez-nous	-
