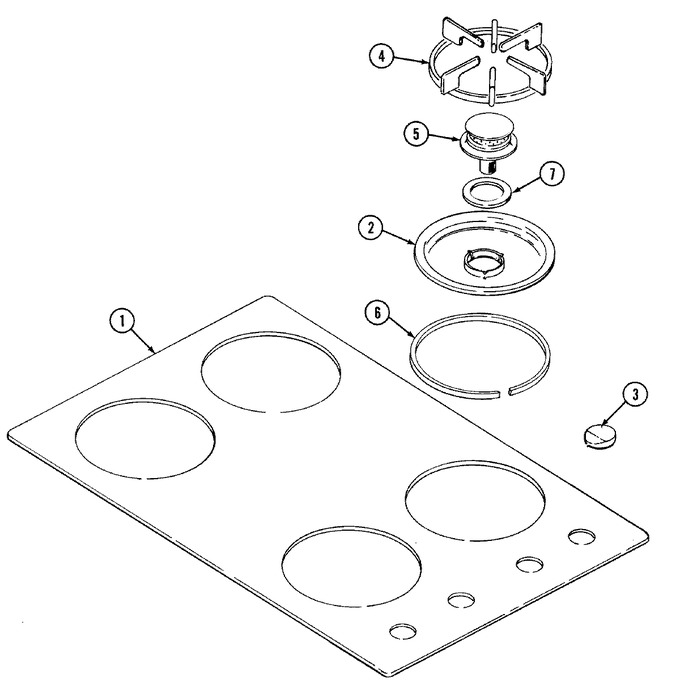

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7918P026-60 | Glass, Main Top (white) | 01 |
|
- | ||||
| 1 | 12400017 | Tape Kit (wht) Foam 112`` | 01 |
|
- | ||||
| 2 | 7101P314-60 | Screw | 01 |
|
- | ||||
| 2 | 3424F002-85 | Bowl, Drip (wht) | 01 |
|
- | ||||
| 3 | 8007P021-60 | Bushing (blk) | 01 |
|
- | ||||
| 3 | 7733P043-60 | Knob, Burner (wht) | 01 |
|
$ 19.91 | ||||
| 3 | WP74001253 | Knob, Top Burner (blk) (Replaces: 74001253) | 17 |
|
$ 19.77 | ||||
| 4 | 7518P023-60 | Grate, Rd (blk) | 11 |
|
- | ||||
| 4 | 2003F022-00 | Grate Burner (black) | 01 |
|
- | ||||
| 5 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 01 |
|
Immediately | $ 92.69 | |||
| 5 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 01 |
|
- | ||||
| 5 | 7101P286-60 | Screw, Burner Mtg | 01 |
|
$ 7.00 | ||||
| 5 | 74004053 | Igniter, Top Burner | 23 |
|
Immediately | $ 24.25 | |||
| 6 | 12400041 | Seal, Tape | 01 |
|
$ 48.39 | ||||
| 7 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 01 |
|
Immediately | $ 92.69 | |||
| 8 | 8113P037-60 | Manual, Use & Care | 01 |
|
- | ||||
| 9 | 16000329 | Guide, Quick Ref. - Magic Chef | 01 |
|
- |
