Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 307981 Bracket, Mounting (2) Appelez-nous -
1 WP681414 Screw (5)   (Replaces: 343641) In-Stock Immediately $ 7.07

2 3149256 Rail L.h. (includes Illus. 3) Appelez-nous -
2 WP681414 Screw, 10a X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

2 3149255 Rail R.h. Appelez-nous -
3 3149257 Glide, Front (2) Appelez-nous -
3 307748 Screw (2) Appelez-nous -
4 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

4 3150532 Screw, 10-32 X 7/16 (2) Appelez-nous -
5 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

5 3150532 Screw, 10-32 X 7/16 (2) Appelez-nous -
6 98884 Screw, 10-16 X 1 (2) Appelez-nous -
6 WP112432 Nut (6)   (Replaces: 112432) Special Order $ 7.16

6 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

7 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

7 313660 Clip Appelez-nous -
7 308498 Ground Strap Appelez-nous -
8 3150190 Bracket, Service Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

10 3148975 Cover, Rear Appelez-nous -
10 WP681414 Screw, 10-16 X 1/2 (7)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 307972 Cover, Service Appelez-nous -
12 4396923 Pan, Broiler   (Replaces: 3169076) In-Stock Immediately $ 52.04

13 4396923 Rack, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

14 308173 Rack, Oven (straight) Appelez-nous -
15 308172 Rack, Oven (offset) Appelez-nous -
17 WA906B Scraper, Glass   (Replaces: 3183488) In-Stock Immediately $ 4.86

17 3149258 Block, Balance Appelez-nous -
17 340184 Screw (1) 10-16 X 1 1/2 Special Order $ 12.10

17 3169093 Insulation, Wrapper Appelez-nous -
17 3169094 Insulation, Oven Back Appelez-nous -
17 8273888A Anti-tip Kit (floor Mount)   (Replaces: 814091) Special Order $ 27.96

17 CERAMABRYTE Cleaner, Glass   (Replaces: 3184477) In-Stock Immediately $ 9.95


    View Diagram in Separate Window     Print Icon   Print Part List

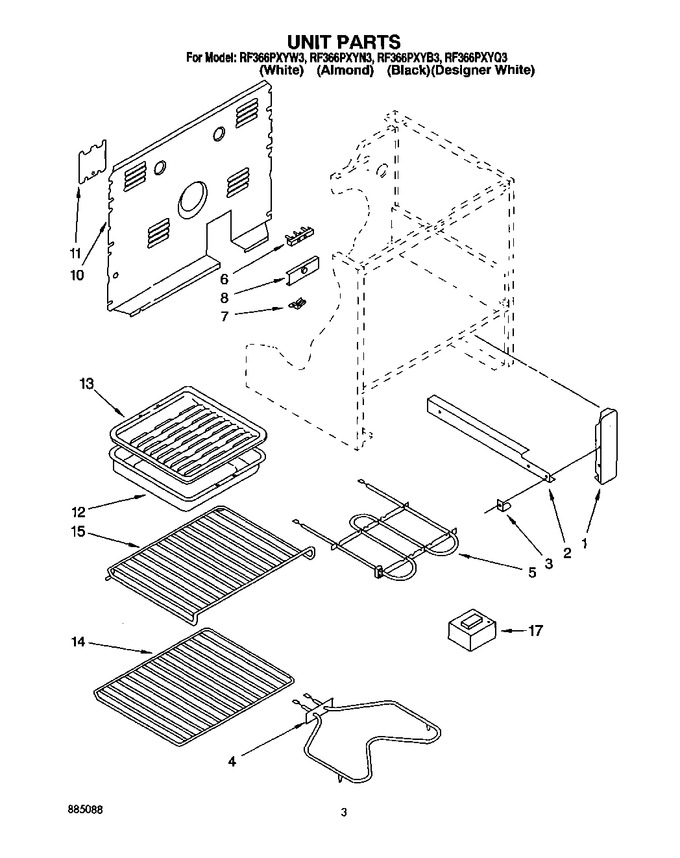

Diagram for RF366PXYB3
