SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner

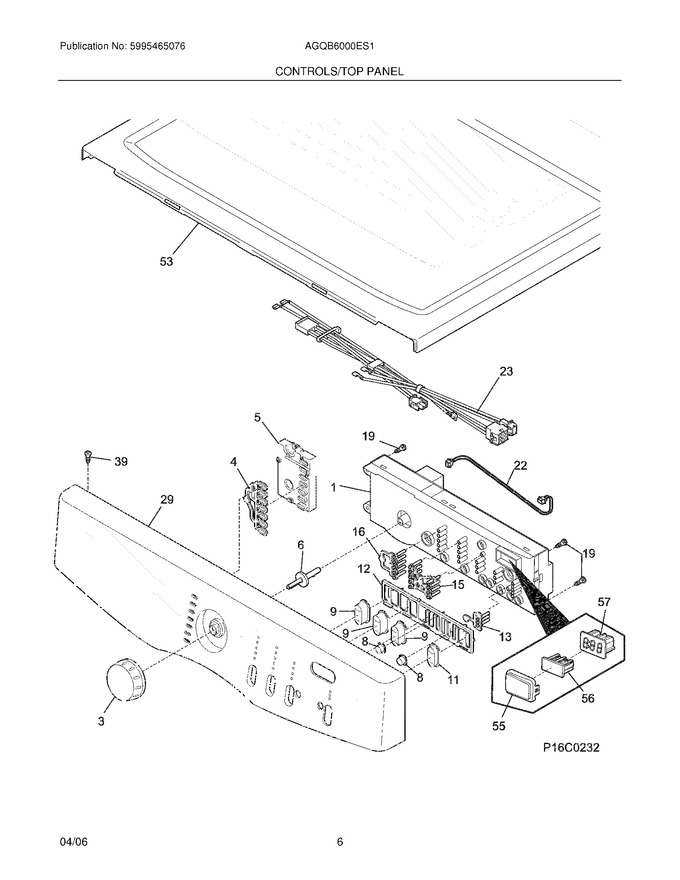

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	134551200		Knob,program				$ 36.56
4	134553100		Light Pipe,program				$ 14.12
6	134347700		Pin,program Knob				$ 19.74
8	134555500		Push Button,round ,no.1				$ 16.49
9	134553400		Push Button,oval ,no.1				$ 18.59
11	134595600		Push Button,oval ,start				$ 13.97
12	134553300		Spring,push Button				$ 15.44
13	134557501		Light Pipe,start Group				$ 16.96
15	134552800		Light Pipe,5 X 4				$ 18.43
16	134600000		Light Pipe,row Of 5				$ 18.43
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
29	134557000		Panel,control Console				$ 125.74
39	134178901		Screw,8-18ab X 0.455				$ 14.89
53	134365000		Panel,work Top ,white		Appelez-nous	-
55	134553200		Lens,digital Display				$ 12.65
56	134557300		Light Pipe,digital Display				$ 19.06
F1	134557201NH		Control Board,printed Circuit ,with Housing   (Replaces: 134557201)				$ 235.67
F22	134602100		Wiring Harness,interface Board				$ 56.44
F23	134394400		Wiring Harness,controls				$ 119.23
F5	134556500NH		Interface Board,pc ,auxiliary   (Replaces: 134556500)				$ 195.92
F57	134503300		Display,digital				$ 52.24
NI	134491500		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
