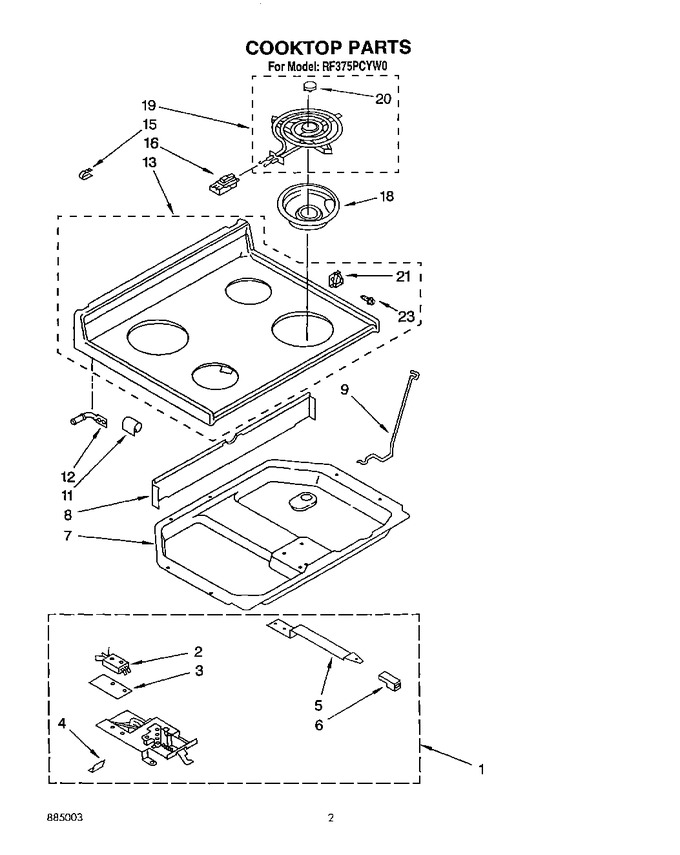

02 - Cooktop
03 - Control Panel
04 - Door And Drawer
05 - Unit, Lit/optional
06 - Oven
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 3183322 | Latch Asm Complete W/wire Harness |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 2 | 3182741 | Safety Switch |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 313035 | Shield, Latch |
|
- | |||||
| 4 | 309258 | Screw,6-3/8 (2) |
|
- | |||||
| 5 | 308422 | Screw (2) |
|
- | |||||
| 5 | 3169081 | Handle, Latch |
|
- | |||||
| 6 | 155023 | Screw 8-32 X 1/4 |
|
Immediately | $ 7.91 | ||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 7 | 3169186 | Box, Burner |
|
- | |||||
| 7 | WP3390631 | Screw (4) (Replaces: 309112) |
|
$ 7.04 | |||||
| 8 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 8 | 307973 | Shield, Wiring |
|
- | |||||
| 9 | WP681414 | Screw 10-32 X 1/2 (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 9 | 3148659 | Rod, Cooktop |
|
- | |||||
| 11 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 11 | 307965 | Bracket, Cooktop (2) |
|
- | |||||
| 12 | 307966 | Pin, Cooktop (2) |
|
- | |||||
| 12 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 13 | 3170982 | Cooktop (almond) |
|
- | |||||
| 13 | WP681414 | Cooktop (screw 10-32 X 1/2) (Replaces: 690989) |
|
Immediately | $ 7.07 | ||||
| 13 | 3170981 | Cooktop (white) |
|
- | |||||
| 15 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 16 | WP313808 | Screw, 6-32 X 1/4 (4) (Replaces: 313808) |
|
$ 6.84 | |||||
| 16 | 330031 | Receptacle, Clip (4) (Replaces: 312606) |
|
Immediately | $ 14.48 | ||||
| 18 | WPW10290350 | Pan-combination (8`` (2)) (Replaces: 3169205) |
|
Immediately | $ 15.25 | ||||
| 18 | W10290353RW | Pan-combination (6`` (2)) (Replaces: 3169204) |
|
Immediately | $ 19.27 | ||||
| 19 | WP660533 | Unit, Surface (8`` (2) (includes Illus. 20)) (Replaces: 660533) |
|
Immediately | $ 39.47 | ||||
| 19 | WP660532 | Unit, Surface (6`` (2)) (Replaces: 660529) |
|
Immediately | $ 36.90 | ||||
| 20 | 309195 | Medallion (4) |
|
- | |||||
| 21 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 23 | 814103 | Fastener (4) (Replaces: 3148789) |
|
$ 9.02 |
