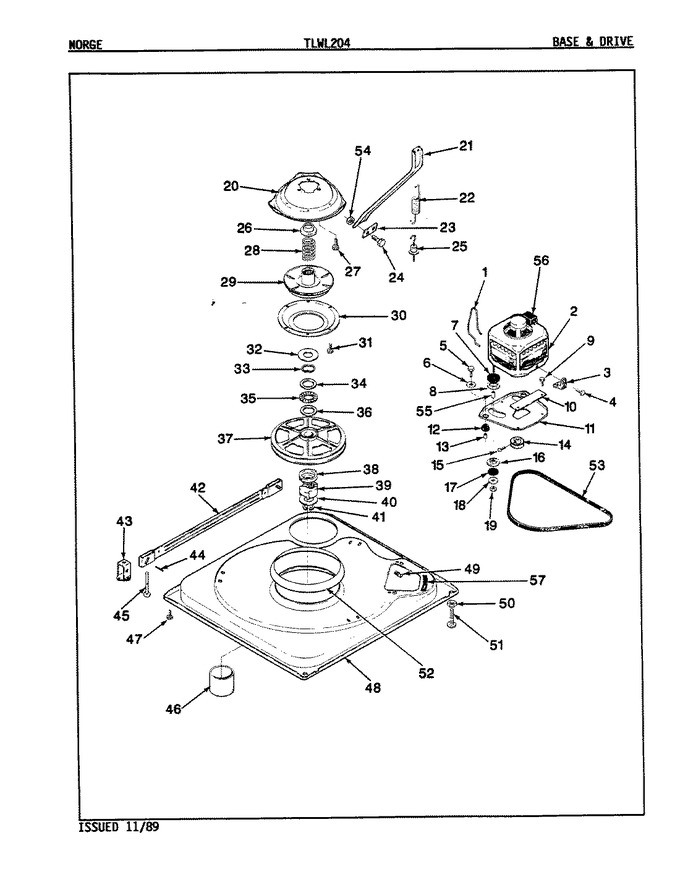

01 - Base & Drive
02 - Control Panel
03 - Exterior
04 - Transmission & Related Parts
05 - Tub
06 - Water Carrying & Pump Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-0235 | Spring, Motor Pivot |
|
- | |||||
| 2 | 35-2030 | Motor |
|
- | |||||
| 2 | LA-2002 | Motor Kit |
|
- | |||||
| 3 | 33-9945 | Slide, Foot |
|
- | |||||
| 4 | WP308544 | Screw Purchase (Replaces: 25-7418) |
|
Immediately | $ 6.98 | ||||
| 5 | 25-7833 | Screw |
|
- | |||||
| 6 | 25-7834 | Washer |
|
- | |||||
| 7 | 33-9946 | Isolator, Motor |
|
$ 32.40 | |||||
| 8 | 33-9944 | Washer |
|
- | |||||
| 9 | 25-3083 | Screw |
|
- | |||||
| 10 | 33-9947 | Dbl.pivot Slide |
|
- | |||||
| 11 | 35-2021 | Plate, Motor |
|
- | |||||
| 12 | WP35-3646 | Isolator, Motor Plate (Replaces: 33-9941) |
|
$ 6.69 | |||||
| 13 | 25-7831 | Spacer |
|
$ 8.04 | |||||
| 14 | W10143344 | Pulley, Motor (60hz) (Replaces: 35-2124) |
|
$ 112.73 | |||||
| 15 | 25-7117 | Set Screw |
|
- | |||||
| 16 | 33-9943 | Motor Slide |
|
- | |||||
| 17 | 33-9967 | Washer, Motor Isolator |
|
$ 5.27 | |||||
| 18 | 25-7047 | Washer, Flat |
|
$ 30.39 | |||||
| 19 | WPY707702 | Nut, Motor Plate Asy To Motor (Replaces: 25-7325) |
|
Immediately | $ 6.26 | ||||
| 20 | 35-2015 | Suspension Housing |
|
- | |||||
| 21 | 35-2024 | Brace, Tub |
|
- | |||||
| 22 | 35-2092 | Suspension Spring |
|
- | |||||
| 23 | 35-2025 | Plate, Reinforcement |
|
- | |||||
| 24 | 25-7912 | Screw |
|
- | |||||
| 25 | 25-7365 | Eye Bolt |
|
- | |||||
| 26 | 35-2017 | Retainer, Brake Spring |
|
$ 5.85 | |||||
| 27 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy |
|
- | |||||
| 28 | 35-2112 | Spring, Brake |
|
- | |||||
| 29 | 35-2113 | Brake Roter & Lining Assy |
|
- | |||||
| 30 | 35-2018 | Stator, Brake |
|
- | |||||
| 31 | 25-7359 | Screw |
|
- | |||||
| 32 | 12002213 | Spacer-bearing (Replaces: 35-2016) |
|
Immediately | $ 98.84 | ||||
| 33 | 25-7909 | Washer |
|
- | |||||
| 34 | 12002213 | Washer (Replaces: 35-2318) |
|
Immediately | $ 98.84 | ||||
| 35 | 12002213 | Thrust Bearing (Replaces: 35-2078) |
|
Immediately | $ 98.84 | ||||
| 36 | 35-2081 | Washer |
|
- | |||||
| 37 | 12002213 | Drive Pulley Assy (Replaces: 35-2119) |
|
Immediately | $ 98.84 | ||||
| 38 | 12002213 | Upper Cam (Replaces: 35-2441) |
|
Immediately | $ 98.84 | ||||
| 39 | 12002213 | Cam, Lower (Replaces: 35-2439) |
|
Immediately | $ 98.84 | ||||
| 40 | 35-2082 | Washer,1.25odx.530idx.062 |
|
$ 5.61 | |||||
| 41 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) |
|
$ 10.68 | |||||
| 42 | 35-2049 | Bar, Stabilizer (with Guide) |
|
- | |||||
| 43 | 35-2046 | Bracket, Stabilizer |
|
$ 39.94 | |||||
| 44 | 35-2052 | Pin, Stabilizer |
|
$ 6.02 | |||||
| 45 | WP22004469 | Foot, Self Stabilizer (Replaces: 35-2050) |
|
$ 14.52 | |||||
| 46 | 35-2007 | Cap, Dust |
|
- | |||||
| 47 | WP489483 | Screw, No.10 Torq Limiting (Replaces: 25-7828) |
|
$ 9.78 | |||||
| 48 | 35-2019 | Base, Washer |
|
- | |||||
| 49 | 25-7838 | Speednut |
|
- | |||||
| 50 | 25-7915 | Hex Nut |
|
- | |||||
| 51 | 35-0772 | Foot, Front |
|
- | |||||
| 52 | WP21002026 | Snubber (Replaces: 35-2357) |
|
Immediately | $ 9.68 | ||||
| 53 | WP21352320 | Belt, Drive Pulley (Replaces: 35-2320) |
|
Immediately | $ 19.29 | ||||
| 54 | 25-0226 | Hex Nut |
|
- | |||||
| 55 | 25-7830 | Spacer |
|
$ 8.39 | |||||
| 56 | 33-9765 | Switch, Motor |
|
- | |||||
| 56 | 25-7413 | Flat Washer |
|
- | |||||
| 56 | 35-2039 | Pad, Foot |
|
- | |||||
| 57 | 35-2065 | Pad, Motor Plate |
|
- |
