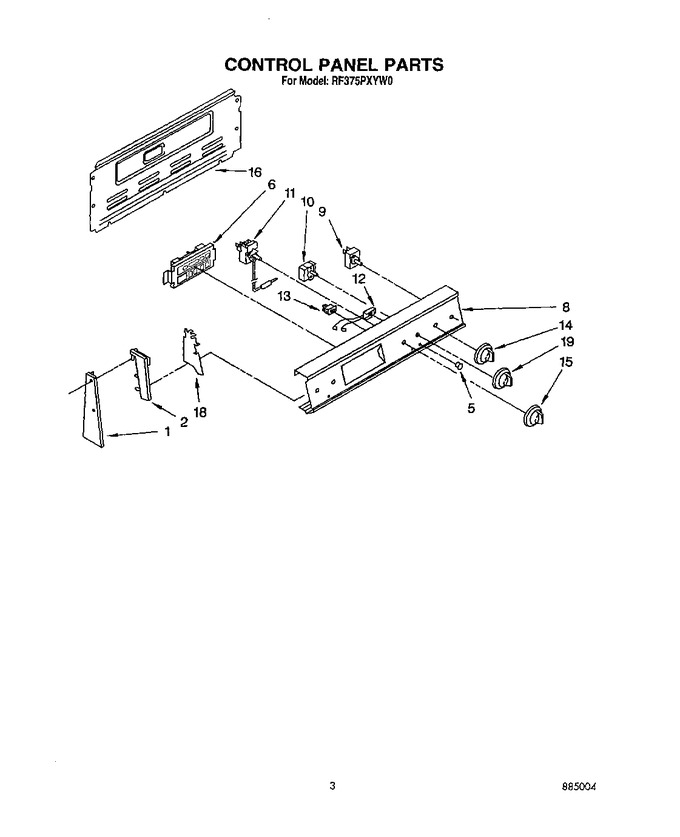

02 - Cooktop
03 - Control Panel
04 - Door And Drawer
05 - Unit, Lit/optional
06 - Oven
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 312604 | Screw 8-18 X 5/8 (4) |
|
- | |||||
| 1 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 313191 | End Trim R.h. |
|
- | |||||
| 1 | 313190 | End Trim L.h. |
|
- | |||||
| 2 | 313231 | End Cap L.h. |
|
- | |||||
| 2 | 313230 | End Cap R.h. |
|
- | |||||
| 2 | 254225 | Screw (4) |
|
- | |||||
| 5 | 313101 | Lens, Light (2) |
|
- | |||||
| 6 | WP965173 | Timer, Erc (screw (2)) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 6 | 3183187 | Timer, Erc (designer White) |
|
- | |||||
| 6 | 3183186 | Timer, Erc (white/almond) |
|
- | |||||
| 8 | 3182987 | Control Panel (white/almond) |
|
- | |||||
| 8 | 3182988 | Control Panel (designer White) |
|
- | |||||
| 9 | WP486579 | Switch, Infinite (screw, 8-32 X 1/4 (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 9 | 5500-287 | Switch, Infinite (6`` Unit (2)) (Replaces: 3148951) |
|
Immediately | $ 47.15 | ||||
| 9 | WP3149400 | Switch, Infinite (8`` Unit (2)) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 10 | WP965173 | Screw, (2) No.8 X .31 (Replaces: 3150344) |
|
Immediately | $ 9.65 | ||||
| 10 | 3148419 | Switch, Selector (5 Position) |
|
- | |||||
| 11 | 98005642 | Bulb-clip (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| 11 | WP313808 | Screw, 6-32 X 1/4 (2) (Replaces: 311932) |
|
$ 6.84 | |||||
| 11 | 3148933 | Thermostat, Oven |
|
$ 181.60 | |||||
| 12 | 3183695 | Indicator Light (surface Unit) |
|
- | |||||
| 12 | 314031 | Indicator Light (oven) |
|
$ 62.88 | |||||
| 13 | 3182718 | Switch, Rocker (designer White) |
|
- | |||||
| 13 | 3182717 | Switch, Rocker (white/almond) |
|
- | |||||
| 14 | WP681414 | Knob, (4) Infinite Controls (screw, 10-16 X 1/2 (2)) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 3183117 | Knob, (4) Infinite Controls (designer White) |
|
$ 24.34 | |||||
| 14 | 3183118 | Knob, (4) Infinite Controls (white/almond) |
|
$ 23.04 | |||||
| 15 | 3183103 | Knob (temp) (white/almond) |
|
- | |||||
| 15 | 3183104 | Knob, Temp (designer White) |
|
- | |||||
| 16 | 313195 | Rear Cover Control Panel |
|
- | |||||
| 16 | WP681414 | Screw, 10-16 X 1/2 (12) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 18 | WP965173 | Screw (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 18 | 313608 | Shield, Control Panel (2) |
|
- | |||||
| 19 | 3183116 | Knob, Selector (designer White) |
|
- | |||||
| 19 | 3183115 | Knob, Selector (white/almond) |
|
$ 23.60 |
