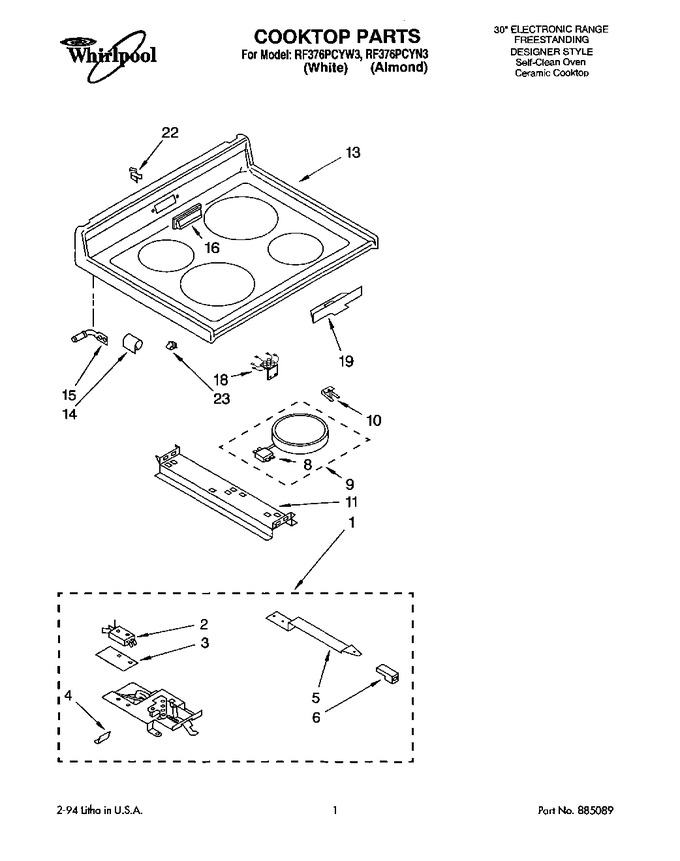

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 1 | 3183322 | Latch Asm Complete W/wire Harness |
|
- | |||||
| 2 | 3182741 | Safety Switch |
|
- | |||||
| 2 | 98106 | Screw (2) |
|
- | |||||
| 3 | 309245 | Insulator, Switch |
|
- | |||||
| 4 | 309258 | Screw (2) |
|
- | |||||
| 4 | 313035 | Shield, Terminal |
|
- | |||||
| 5 | 3169081 | Handle, Latch |
|
- | |||||
| 5 | 308422 | Screw (2) |
|
- | |||||
| 6 | 3148684 | Knob, Latch |
|
- | |||||
| 6 | 155023 | Screw, |
|
Immediately | $ 7.91 | ||||
| 8 | 3183974 | Limiter, Temp. (2100w - Rr) |
|
- | |||||
| 8 | 3183972 | Limiter, Temp. (1700w - Rf) |
|
- | |||||
| 8 | 3149129 | Limiter, Temp. (1400w - Lr) |
|
- | |||||
| 8 | 3183973 | Limiter, Temp. (2400w - Lf) |
|
- | |||||
| 9 | 3183648 | Element, Surface (includes No.8) (2100w - Rr) |
|
- | |||||
| 9 | 3183647 | Element, Surface (includes No.8) (1700w - Rf) |
|
- | |||||
| 9 | 3183646 | Element, Surface (includes No.8) (1400w - Lr) |
|
- | |||||
| 9 | 3183649 | Element, Surface (includes No.8) (2400w - Lf) |
|
- | |||||
| 10 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 10 | 3149191 | Spring (8) |
|
$ 9.45 | |||||
| 11 | 98520 | Screw (6) |
|
- | |||||
| 11 | 3148809 | Bracket, Support |
|
- | |||||
| 13 | 3176528 | Cooktop (almond) |
|
- | |||||
| 13 | 3176527 | Cooktop (white) |
|
- | |||||
| 14 | 307965 | Bracket, Hinge (2) |
|
- | |||||
| 14 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | WP681414 | Screw (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 15 | 307966 | Pin, Hinge (2) |
|
- | |||||
| 16 | 3149011 | Cover, Vent (white) |
|
- | |||||
| 16 | 98520 | Cover, Vent (screw (2)) |
|
- | |||||
| 16 | 3149012 | Cover, Vent (almond) |
|
- | |||||
| 18 | 3169371 | Light, Indicator |
|
- | |||||
| 19 | 3169237 | Shield, Probe |
|
- | |||||
| 22 | 3149190 | Clip, Mounting (2) |
|
- | |||||
| 23 | 311311 | Clip, Wire |
|
- | |||||
| LIT3150400 | Insallation Instr (templet) |
|
- | ||||||
| LIT3187321 | Instructions, Installation |
|
- | ||||||
| LIT3169368 | Wiring Diagram |
|
- | ||||||
| LIT3187480 | Use And Care Guide |
|
- |
