SELECT A DIAGRAM

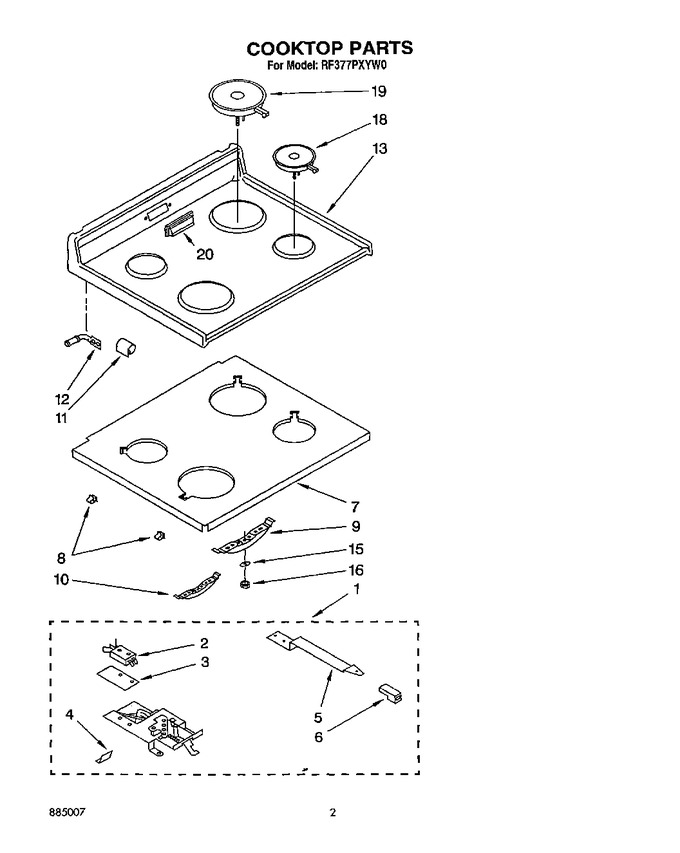

02 - Cooktop


03 - Control Panel


04 - Door And Drawer


05 - Unit, Lit/optional


06 - Oven


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3183322		Latch Asm Complete (includes Wire Harness)		Appelez-nous	-
1	WP681414		Screw (2)   (Replaces: 343641)			Immediately	$ 7.07
2	3182741		Safety Switch		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	313035		Shield, Latch		Appelez-nous	-
4	309258		Screw,6-3/8 (2)		Appelez-nous	-
5	308422		Screw (2)		Appelez-nous	-
5	3169081		Handle, Latch		Appelez-nous	-
6	3148684		Knob, Latch		Appelez-nous	-
6	155023		Screw 8-32 X 1/4			Immediately	$ 7.91
7	3149261		Support, Cooktop		Appelez-nous	-
8	311311		Clip, Wire		Appelez-nous	-
9	3147703		Bracket, Mounting		Appelez-nous	-
10	3147704		Bracket, Mounting		Appelez-nous	-
11	307965		Bracket, Cooktop (2)		Appelez-nous	-
11	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.07
12	307966		Pin, Cooktop (2)		Appelez-nous	-
12	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
13	3171372		Cooktop (white)		Appelez-nous	-
13	3171373		Cooktop (almond)		Appelez-nous	-
15	3147191		Spring, Leaf		Appelez-nous	-
16	3147189		Nut, Metric		Appelez-nous	-
18	3183552		Element (6``)		Appelez-nous	-
19	3183553		Element (8``)		Appelez-nous	-
20	3149190		Cover, Vent (mounting Clip (2))		Appelez-nous	-
20	3149011		Cover, Vent (white)		Appelez-nous	-
20	3149012		Cover, Vent (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
