SELECT A DIAGRAM

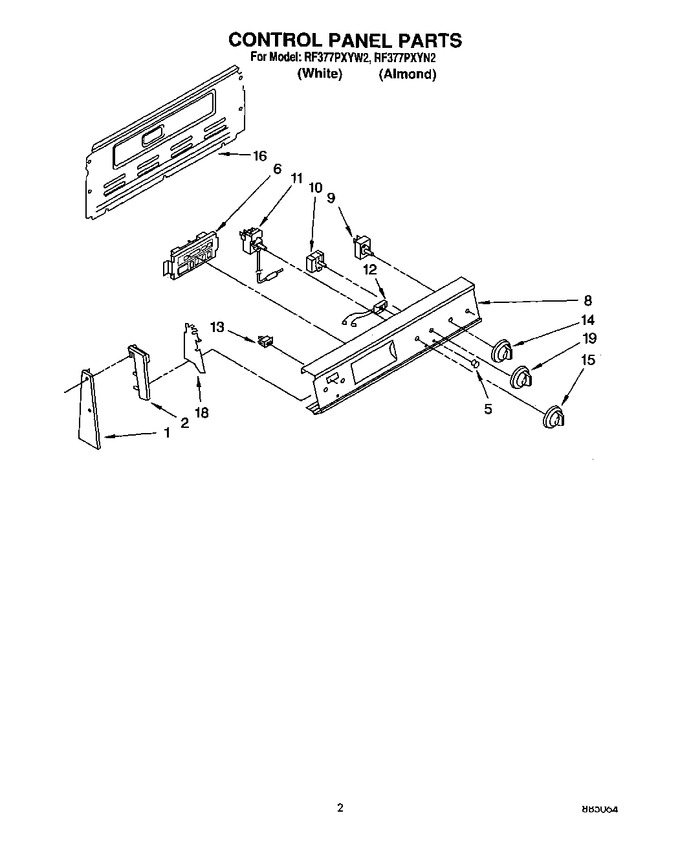

01 - Cooktop


02 - Control Panel


03 - Door And Drawer


04 - Unit, Lit/optional


05 - Oven


06 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313191		End Trim R.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
1	312604		Screw 8-18 X 5/8 (4)		Appelez-nous	-
1	313190		End Trim L.h.		Appelez-nous	-
2	254225		Screw (4)		Appelez-nous	-
2	313231		End Cap L.h.		Appelez-nous	-
2	313230		End Cap R.h.		Appelez-nous	-
5	313101		Lens, Light (2)		Appelez-nous	-
6	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 9.65
6	3183186		Timer, Clock		Appelez-nous	-
8	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
8	3182987		Control, Panel		Appelez-nous	-
9	WP3149400		Switch, Infinite (6`` Unit (2))   (Replaces: 3148954)			Immediately	$ 81.46
9	5500-287		Switch, Infinite (8`` Unit (2))   (Replaces: 3148953)			Immediately	$ 47.15
9	308119		Switch, Infinite (screw, 8-32 X 1/4 (8))		Appelez-nous	-
10	WP965173		Screw, No.8 X .31 (2)   (Replaces: 3150344)			Immediately	$ 9.65
10	3148419		Switch, Selector (5 Position)		Appelez-nous	-
11	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
11	3148933		Thermostat, Oven				$ 181.60
11	98005642		Bulb-clip   (Replaces: 313382)			Immediately	$ 74.64
12	314031		Indicator Light (oven Unit)				$ 62.88
12	3183695		Indicator Light (surface Unit)		Appelez-nous	-
13	3182717		Switch, Rocker		Appelez-nous	-
14	3183118		Knob, (4) (infinite Switch)				$ 23.04
15	3183103		Knob, Thermostat		Appelez-nous	-
16	WP681414		Screw, 10-16 X 1/2 (12)   (Replaces: 343641)			Immediately	$ 7.07
16	3187332		Rear Cover Control Panel		Appelez-nous	-
18	313608		Shield, Control Panel (2)		Appelez-nous	-
18	WP965173		Screw (4)   (Replaces: 246132)			Immediately	$ 9.65
19	3183115		Knob (selector)				$ 23.60
