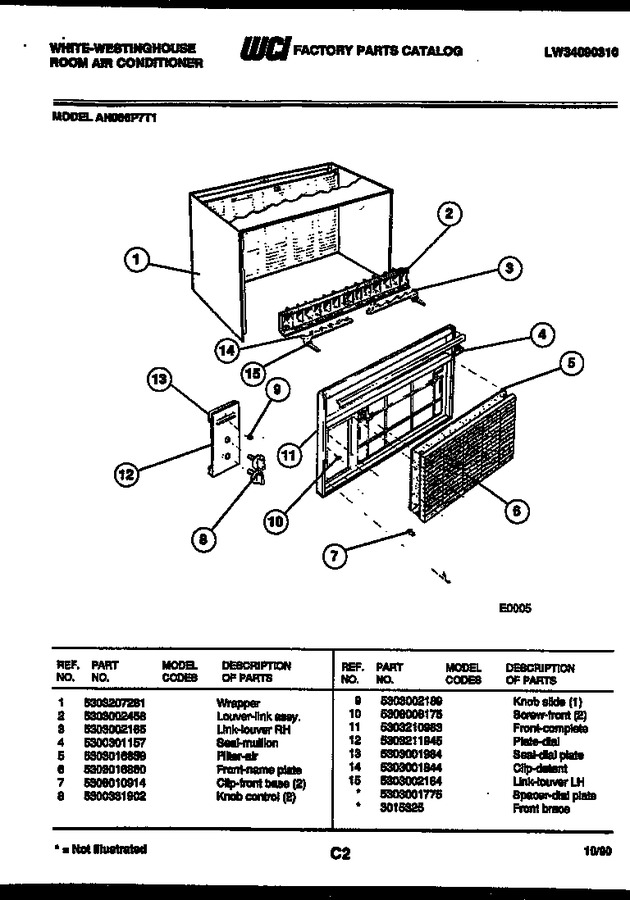

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207281 | Wrapper |
|
- | |||||
| 2 | 5303002458 | Louver-link Assy |
|
- | |||||
| 3 | 5303002165 | Link-louver Rh |
|
- | |||||
| 4 | 5300301157 | Seal-mullion |
|
- | |||||
| 5 | 5303016859 | Filter-air |
|
- | |||||
| 6 | 5303016860 | Front-nameplate |
|
- | |||||
| 7 | 5308010914 | Clip-front Base (2) |
|
- | |||||
| 8 | 5300331902 | Knob-control (2) |
|
- | |||||
| 9 | 5303002189 | Knob Slide (1) |
|
- | |||||
| 10 | 5308008175 | Screw-front (2) |
|
- | |||||
| 11 | 5303210983 | Front-complete |
|
- | |||||
| 12 | 5303211945 | Plate-dial |
|
- | |||||
| 13 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 14 | 5303001844 | Clip-detent |
|
- | |||||
| 15 | 5303002164 | Link-louver Lh |
|
- | |||||
| *37054 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| *37054 | 3015325 | Front Brace |
|
- |
