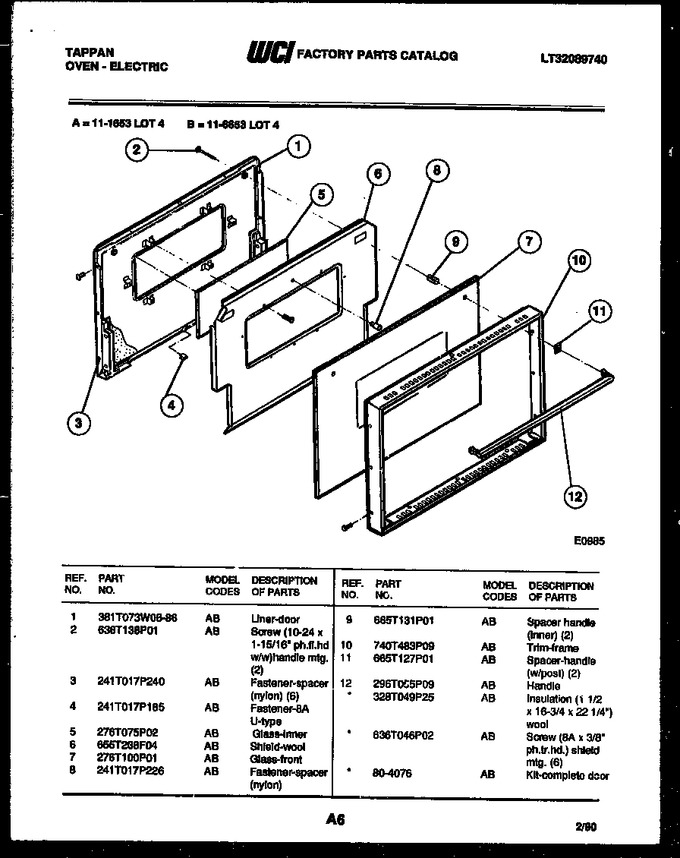

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 381T073W06-86 | Liner-door |
|
- | |||||
| 2 | 636T138P01 | Screw (10-24 X 1-15/16`` Ph.fl.hd.w/w) Handle Mtg. (2) |
|
- | |||||
| 3 | 241T017P240 | Fastener-spacer (nylon) (6) |
|
- | |||||
| 4 | 241T017P185 | Fastener-8a U-type |
|
- | |||||
| 5 | 276T075P02 | Glass-inner |
|
- | |||||
| 6 | 655T288F04 | Shield-wool |
|
- | |||||
| 7 | 276T100P01 | Glass-front |
|
- | |||||
| 8 | 241T017P226 | Fastener-spacer (nylon) |
|
- | |||||
| 9 | 665T131P01 | Spacer Handle (inner) (2) |
|
- | |||||
| 10 | 740T483P09 | Trim-frame |
|
- | |||||
| 11 | 665T127P01 | Spacer-handle (w/post) (2) |
|
- | |||||
| 12 | 296T055P09 | Handle |
|
- | |||||
| *17729 | 80-4076 | Kit-complete Door |
|
- | |||||
| *17729 | 636T046P02 | Screw (8a X 3/8`` Ph.tr.hd.) Shield Mtg. (6) |
|
- | |||||
| *17729 | 328T049P25 | Insulation (1 1/2 X 16-3/4 X 22 1/4``) Wool |
|
- |
