02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

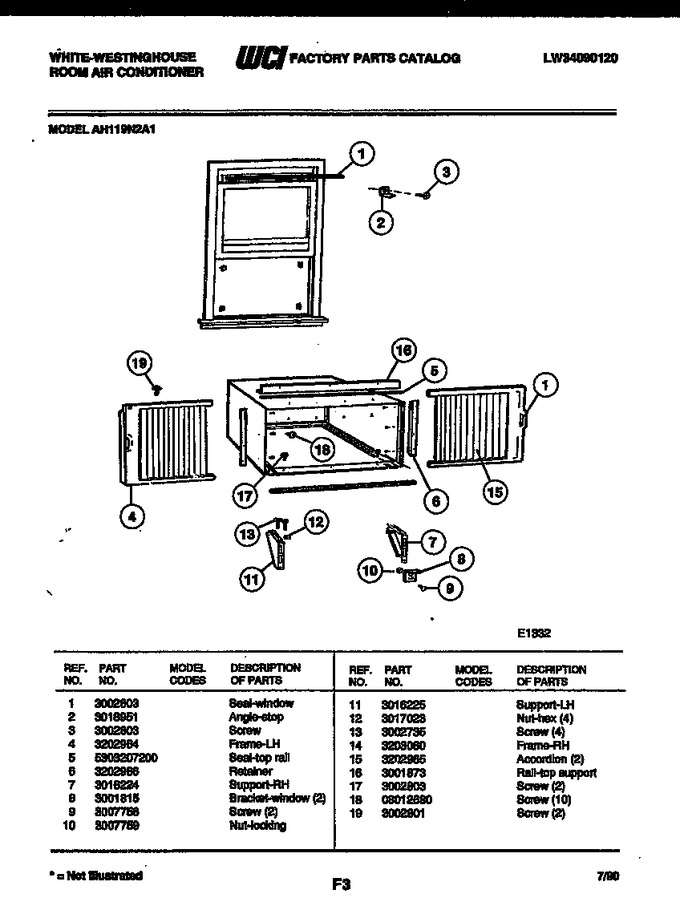

| 1 | 3002603 | Seal-window |
|
- | |||||
| 2 | 3018951 | Angle-stop |
|
- | |||||
| 3 | 3002803 | Screw |
|
- | |||||
| 4 | 3202964 | Frame-lh |
|
- | |||||
| 5 | 5303207200 | Seal-top Rail |
|
- | |||||
| 6 | 3202966 | Retainer |
|
- | |||||
| 7 | 3016224 | Support-rh |
|
- | |||||
