SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

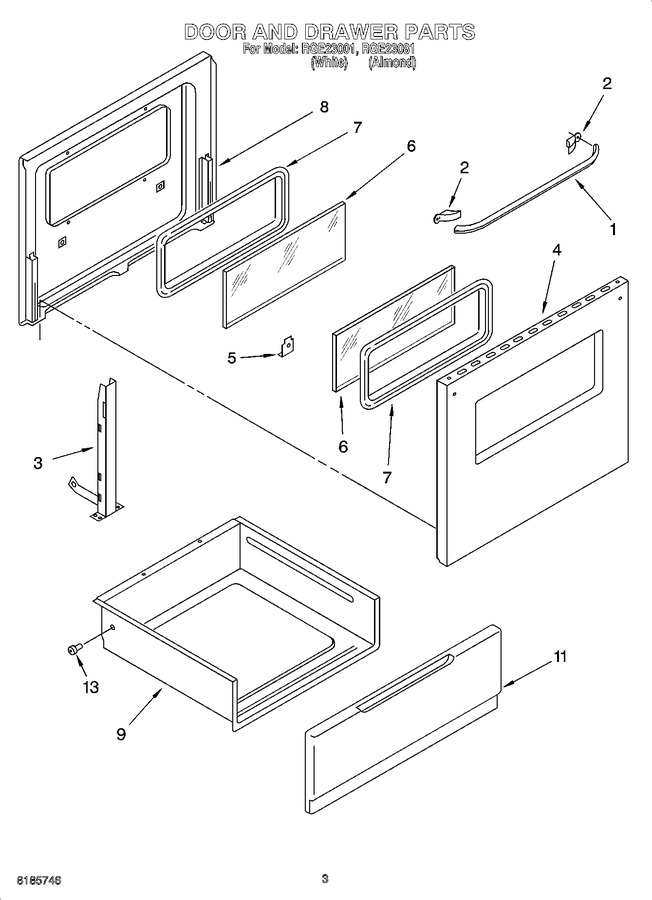

03 - Door And Drawer Parts


04 - Oven Chassis Parts


05 - Oven Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9751601PB		Handle, Door-black		Appelez-nous	-
2	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
2	9781576		End Cap, Handle		Appelez-nous	-
2	9780266		Screw (2) 10-24 X 5/8		Appelez-nous	-
3	9780265		Screw (4) 10 X 3/8		Appelez-nous	-
3	9782034		Hinge, Door R Or L		Appelez-nous	-
4	9780265		Screw, Hinge (2)		Appelez-nous	-
4	9781690GW		Panel, Door (white)		Appelez-nous	-
4	3149333		Screw, Liner (2)				$ 5.33
4	9781690GT		Panel, Door (almond)		Appelez-nous	-
5	9781613		Retainer, Glass (4) Inner - Outer		Appelez-nous	-
5	9780271		Screw (4) 8 X 1/4		Appelez-nous	-
6	421474		Glass, Inner-outer		Appelez-nous	-
7	422642		Gasket, Oven Glass		Appelez-nous	-
8	9780265		Screw, (6) 10 X 3/8		Appelez-nous	-
8	9780672GM		Liner, Door		Appelez-nous	-
9	9750796		Drawer & Roller 10-24 X 1/4		Appelez-nous	-
11	9781164PW		Front, Drawer (white)		Appelez-nous	-
11	WP90296		Clip   (Replaces: 90296)				$ 7.07
11	423247		Screw, (4)		Appelez-nous	-
11	9781164PT		Front, Drawer (almond)		Appelez-nous	-
13	814229		Support, Roller   (Replaces: 423713)			Immediately	$ 51.23
