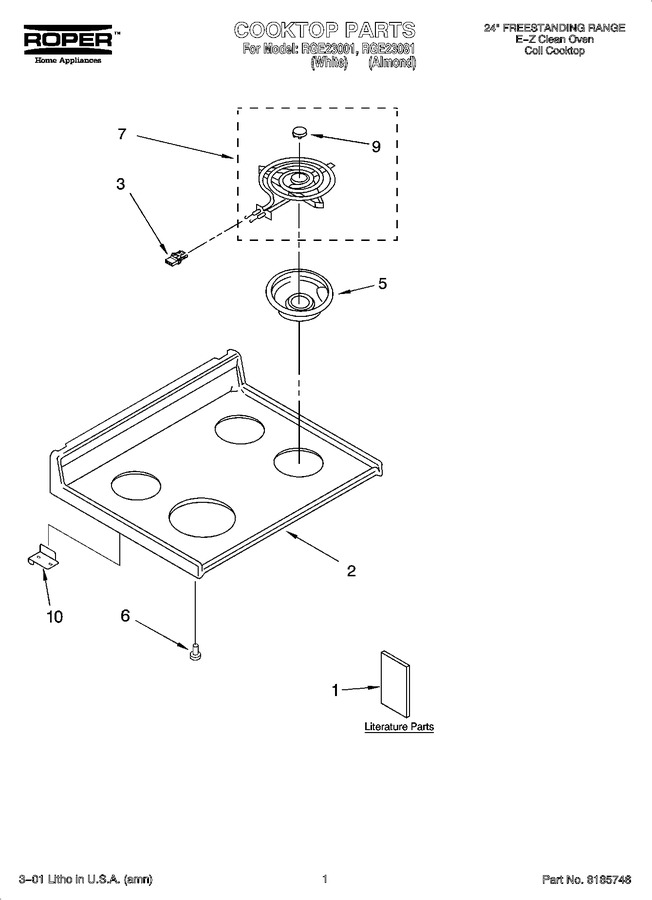

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9754174 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT9752767 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9781875 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 9750165GT | Cooktop, Coil (almond) |
|
- | |||||
| 2 | 9750165GW | Cooktop, Coil (white) |
|
- | |||||
| 3 | WP313808 | Screw, (4) 6-32 X 1/4 (Replaces: 9750891) |
|
$ 6.84 | |||||
| 3 | 9782013 | Receptacle, Clip |
|
- | |||||
| 5 | WPW10196406 | Ring-bowl 6`` (3) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 5 | W10196405RW | Ring-bowl 8`` (Replaces: 3150247) |
|
Immediately | $ 18.70 | ||||
| 6 | 238614 | Bumper (2) White (Replaces: 9750969) |
|
$ 72.68 | |||||
| 7 | 9782073 | Element, Surface (coil, 8`` Lf) |
|
- | |||||
| 7 | 9782076 | Element, Surface (coil, 6`` Lr-rf-rr (accu-simmer)) |
|
- | |||||
| 9 | 4422096 | Medallion (4) |
|
$ 5.71 | |||||
| 10 | 9780270 | Screw 8 X 3/8 |
|
- | |||||
| 10 | 9781512 | Bracket, Front (left) |
|
- | |||||
| 10 | 9781500 | Bracket, Front (right) |
|
- | |||||
| 10 | 9780265 | Screw (2) 10 X 3/8 |
|
- |
