01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:

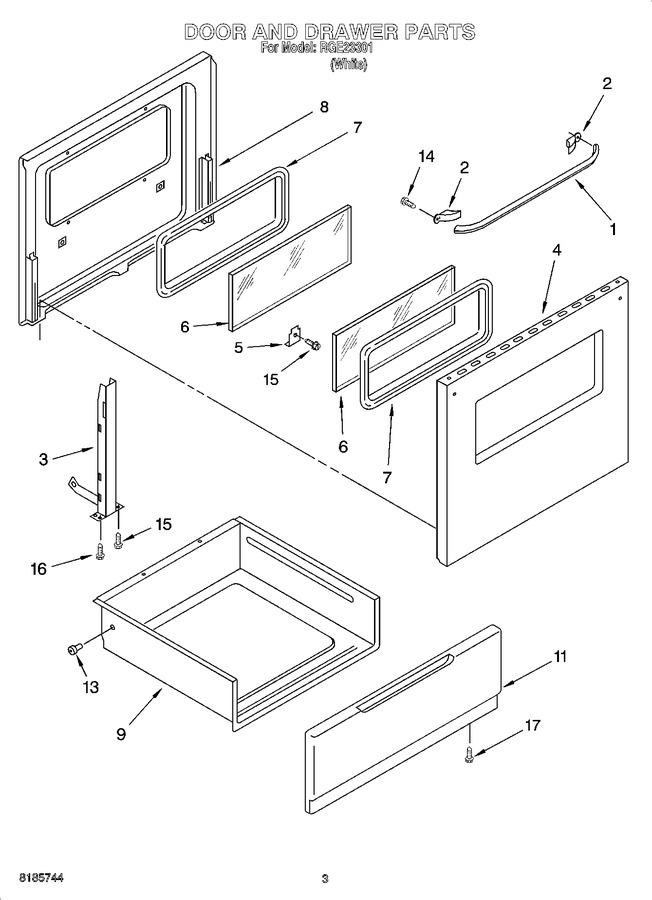

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9751601PW | Handle, Door |
|
$ 33.08 | |||||
| 2 | 9781575 | End Cap, Handle |
|
- | |||||
| 3 | 9782034 | Hinge, Door R Or L |
|
- | |||||
| 4 | 9781690GW | Panel, Door (white) |
|
- | |||||
| 5 | 9781613 | Retainer, Glass (4) |
|
- | |||||
| 6 | 421474 | Glass |
|
- | |||||
| 7 | 422642 | Gasket, Oven Glass |
|
- | |||||
| 8 | 9780672GM | Liner, Door |
|
- | |||||
| 9 | 9750796 | Drawer & Roller |
|
- | |||||
| 11 | 9781164PW | Front, Drawer (white) |
|
- | |||||
| 13 | 814229 | Support, Roller (Replaces: 422604) |
|
Immediately | $ 51.23 | ||||
| 14 | 9780266 | Screw |
|
- | |||||
| 15 | 9780265 | Screw |
|
- | |||||
| 16 | 3149333 | Screw |
|
$ 5.33 | |||||
| 17 | 423247 | Screw |
|
- |
