01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

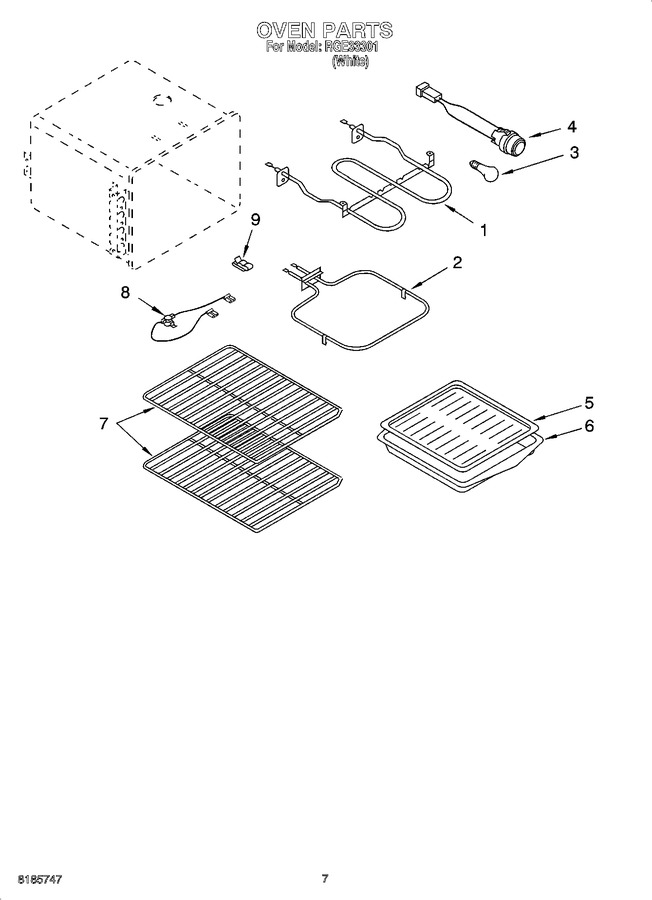

| 1 | 9780993 | Element, Broil |
|
- | |||||
| 2 | UB413 | Element, Bake (Replaces: 9750213) |
|
Immediately | $ 47.24 | ||||
| 2 | 9781509 | Screw, Elements (4) 8-32 X 3/8 |
|
- | |||||
| 2 | 340184 | Screw (2) |
|
$ 12.10 | |||||
| 3 | 40A15 | Bulb, Oven (Replaces: 8935) |
|
Immediately | $ 1.98 | ||||
| 4 | 9750962 | Light Assembly |
|
- | |||||
| 5 | 4396923 | Grill, Broiler (Replaces: 420104GM) |
|
Immediately | $ 52.04 | ||||
| 6 | 4396923 | Pan, Broiler (Replaces: 420101GM) |
|
Immediately | $ 52.04 | ||||
| 7 | 9750498 | Rack, Standard |
|
- | |||||
| 8 | 3189942 | Safety Therm. |
|
$ 80.85 | |||||
| 8 | 9780271 | Screw, (1) 8 X 1/4 |
|
- | |||||
| 9 | 98005642 | Clip, Thermo (2) (Replaces: 313382) |
|
Immediately | $ 74.64 | ||||
| WPW10339879 | Tie, Wire (Replaces: 20082084) |
|
$ 7.11 | ||||||
| WA906B | Scraper (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| 9753252 | Harness, Wire (dco/analog No Auto Sw) |
|
- | ||||||
| 9752771 | Harness, Wire (cooktop Control) |
|
- | ||||||
| 9753301 | Harness, Wire (thermostat) |
|
- | ||||||
| 9750984 | Hanger, Cable |
|
- | ||||||
| 9751003 | Ground, Lead |
|
- | ||||||
| PT600 | Power Cord (Replaces: 9781287) |
|
Immediately | $ 44.31 | |||||
| 9781291 | Harness, Outlet |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 350956 | Paint, Pressurized Spray (12 Oz.) (almond) |
|
$ 46.30 | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| WP681414 | Ground Screw (Replaces: 690989) |
|
Immediately | $ 7.07 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Paint, Bulk (1 Qt.) (almond (uncut)) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| CERAMABRYTE | Glass Cleaner (Replaces: 3184477) |
|
Immediately | $ 9.95 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 261582 | Grease |
|
- | ||||||
| 9781304 | Harness, Wire (oven) |
|
- | ||||||
| 9751014 | Harness, Wire (cooktop) |
|
- |
