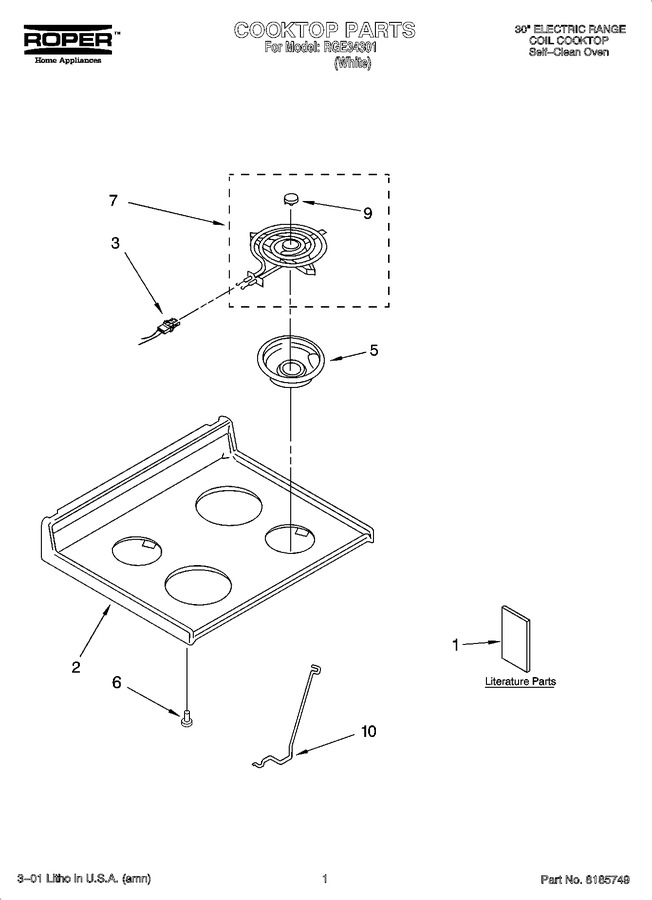

01 - Cooktop Parts
02 - Control Panel Parts
03 - Door And Drawer Parts
04 - Oven Chassis Parts
05 - Oven Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9752768 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT9754176 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT9781875 | Literature Parts (installation Instructions) |
|
- | |||||
| 2 | 9781989GW | Cooktop, Coil |
|
- | |||||
| 3 | WP313808 | Screw, (4) 6-32 X 1/4 (Replaces: 9750891) |
|
$ 6.84 | |||||
| 3 | 9782013 | Receptacle, Clip |
|
- | |||||
| 5 | WPW10290350 | Ring-bowl 8`` (2) (Replaces: 3169205) |
|
Immediately | $ 15.25 | ||||
| 5 | W10290353RW | Ring-bowl 6`` (2) (Replaces: 3169204) |
|
Immediately | $ 19.27 | ||||
| 6 | 238614 | Bumper (2) (Replaces: 9750969) |
|
$ 72.68 | |||||
| 7 | WPW10259868 | Element, Surface (coil, 6`` Lr-rf (2)) (Replaces: 9782074) |
|
Immediately | $ 112.28 | ||||
| 7 | 9782072 | Element, Surface (coil, 8`` Lf-rr (2)) |
|
- | |||||
| 9 | 4211952 | Medallion, (4) |
|
- | |||||
| 10 | 9751538 | Rod, Support (2) |
|
- |
