SELECT A DIAGRAM

01 - Top And Console, Lit/optional

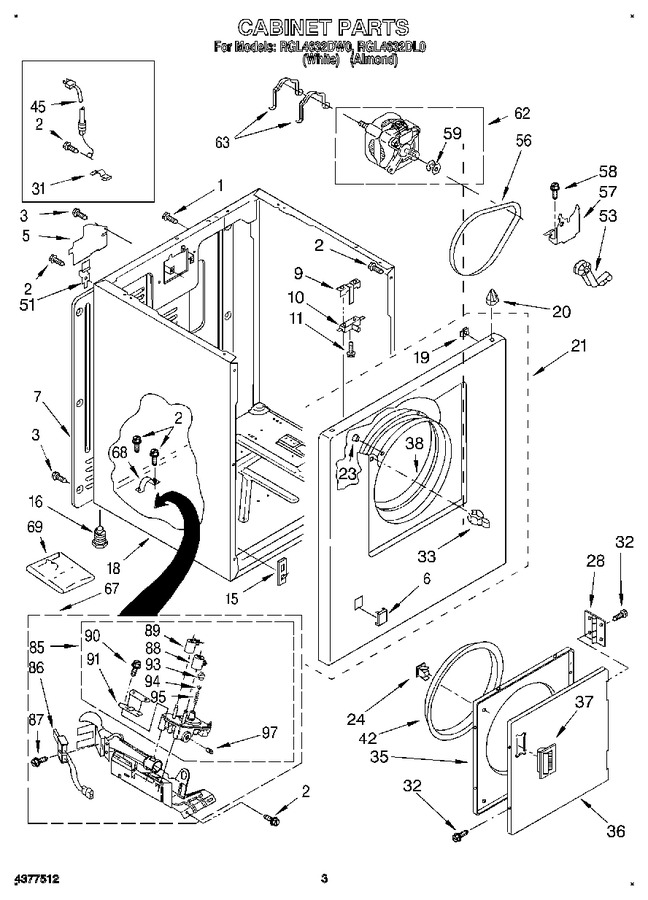

02 - Cabinet


03 - 3401771 Burner Assembly


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-16 X 1/2   (Replaces: 697776)				$ 6.98
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.47
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 539.78
6	3394975		Plug, Front Panel (white)				$ 5.70
6	3394976		Plug, Front Panel (almond)		Appelez-nous	-
7	3396807		Panel, Rear		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 691581)			Immediately	$ 7.28
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 27.45
11	WP98129		Screw, 6-20 X 7/8 (2)   (Replaces: 98129)				$ 6.80
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 14.00
16	49621		Foot, Dryer (4)   (Replaces: 3392100)			Immediately	$ 7.70
18	3399580		Cabinet Assembly (includes Illus. Nos. 5, 7, 15, 16 & 57) (white)		Appelez-nous	-
18	3399581		Cabinet Assembly (includes Illus. Nos. 5, 7, 15, 16 & 57) (almond)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 10.25
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 11.41
21	3394896		Front Panel Assembly (almond)		Appelez-nous	-
21	3394895		Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 18.59
24	WP3389441		Catch, Door   (Replaces: 3389441)			Immediately	$ 5.58
28	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 7.58
31	WP98997		Clip, Harness   (Replaces: 98997)				$ 9.98
32	WP694091		Screw   (Replaces: 694091)				$ 6.47
33	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
35	280077		Door, Rear   (Replaces: 695656)				$ 177.82
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 132.65
36	689314		Door, Front (almond)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686711)			Immediately	$ 7.16
37	689308		Handle, Door (almond)				$ 5.70
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 67.07
42	W11613302		Seal, Door   (Replaces: 3390734)				$ 48.27
45	W11222083		Cord, Power   (Replaces: 344020)				$ 108.53
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.04
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 20.22
56	341241		Belt, Drive   (Replaces: 660996)			Immediately	$ 16.34
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 109.41
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 12.03
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3401143)			Immediately	$ 45.92
62	279827		Motor, 60 Hz.   (Replaces: 3395652)			Immediately	$ 172.76
63	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.05
67	3401771		Burner Assembly, 60 Hz. (refer To Burner Assembly Parts Page For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
69	49572A		Kit, Conversion (type 1, 2 & 3 To Type 4)   (Replaces: 694572)			Immediately	$ 32.57
85	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 257.43
86	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
87	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 6.75
88	279834		Coil, 60 Hz. (split) (3 Terminal) (pilot Position)   (Replaces: 694539)			Immediately	$ 29.57
89	279834		Coil, 60 Hz. (2 Terminal) (main)   (Replaces: 694540)			Immediately	$ 29.57
90	694421		Screw, Bracket Mounting (8-32 X 1/2)		Appelez-nous	-
91	694538		Bracket, Coil				$ 72.05
93	WP694424		Leak Limiter   (Replaces: 694424)				$ 31.11
94	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 6.26
95	WP694422		Spring, Regulator   (Replaces: 694422)				$ 21.84
97	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
