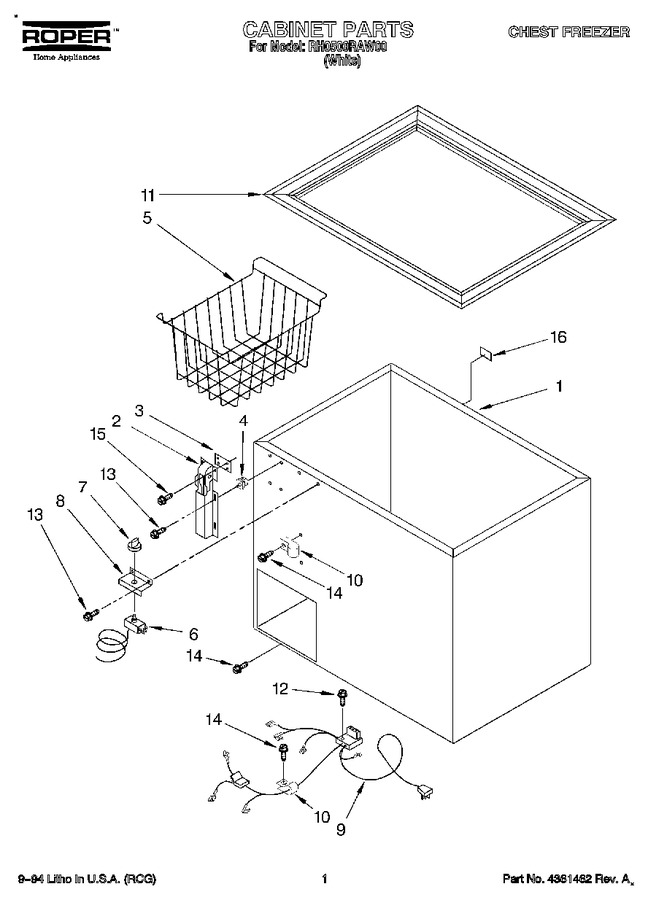

SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356490		Hinge Assembly   (Replaces: 4356413)				$ 211.36
3	1-17548-006		Hinge, Spacer   (Replaces: 4356320)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356346		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356410		Thermostat, Knob		Appelez-nous	-
8	4356409		Thermostat, Control Bracket		Appelez-nous	-
9	4356412		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip (2)   (Replaces: 4356328)				$ 18.41
11	4356407		Breaker Strip		Appelez-nous	-
12	487980		Screw		Appelez-nous	-
13	WP308685		Screw   (Replaces: 308685)			Immediately	$ 7.08
14	WP488787		Screw   (Replaces: 488787)				$ 9.52
15	489181		Screw		Appelez-nous	-
16	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
16	4356408		Nameplate		Appelez-nous	-
16	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
16	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT2165306		Use & Care Guide		Appelez-nous	-
	LIT4356417		Owner`s Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
