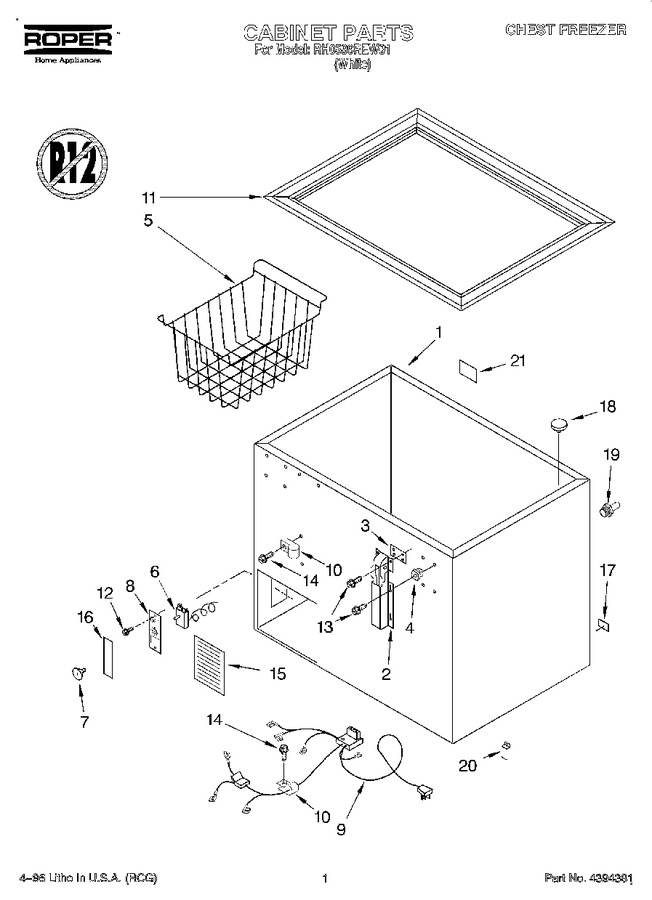

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356514		Hinge Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356346		Wire Basket		Appelez-nous	-
6	4356586		Thermostat		Appelez-nous	-
7	4356585		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356623)		Appelez-nous	-
9	4356588		External, Wiring Harness		Appelez-nous	-
10	488946		Plastic, Clip (2)   (Replaces: 4356589)				$ 18.41
11	4356566		Breaker Strip		Appelez-nous	-
12	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
13	4356491		Screw		Appelez-nous	-
14	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
15	4356622		Access Panel				$ 70.79
16	4356584		Insert, Control		Appelez-nous	-
17	4356505		Drain, Cap		Appelez-nous	-
18	4356455		Drain Cap (inner)		Appelez-nous	-
19	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
20	4356403		Clip		Appelez-nous	-
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
21	4356902		Nameplate		Appelez-nous	-
21	4356489		Rivet Kit (60)		Appelez-nous	-
21	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT4356626		Energy Label		Appelez-nous	-
	LIT2165306		Use & Care Guide		Appelez-nous	-
