SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

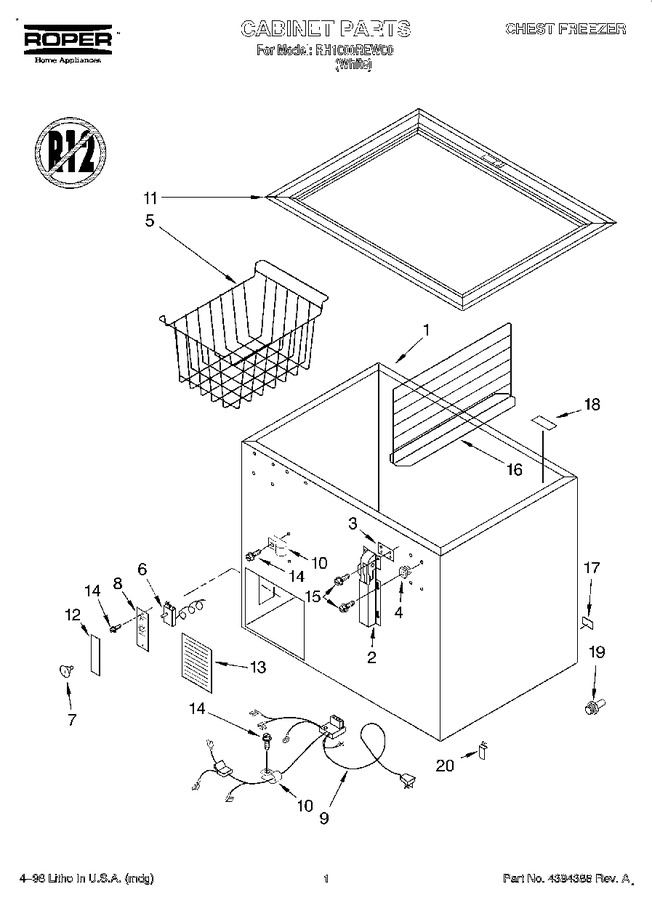

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356526		Hinge Assembly		Appelez-nous	-
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	8210434A		Wire Basket   (Replaces: 4356354)				$ 77.93
6	WP4-35940-001		Thermostat   (Replaces: 4356670)				$ 148.16
7	4356585		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4356588		External, Wiring Harness		Appelez-nous	-
10	488946		Clip, Plastic (2)   (Replaces: 4356589)				$ 18.41
11	4356633		Breaker Strip		Appelez-nous	-
12	4356584		Insert, Control		Appelez-nous	-
13	4356622		Access Panel				$ 70.79
14	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
15	4356491		Screw		Appelez-nous	-
16	4356529		Divider (optional)		Appelez-nous	-
17	4356505		Drain Plug		Appelez-nous	-
18	4356456		Drain, Cap		Appelez-nous	-
19	W11663505		Drain Adaptor   (Replaces: 4356481)				$ 15.45
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
20	4356403		Clip		Appelez-nous	-
20	4356703		Clip, Gasket (kit Of 60)				$ 43.62
20	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT4356687		Energy Label		Appelez-nous	-
	LIT2165306		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
