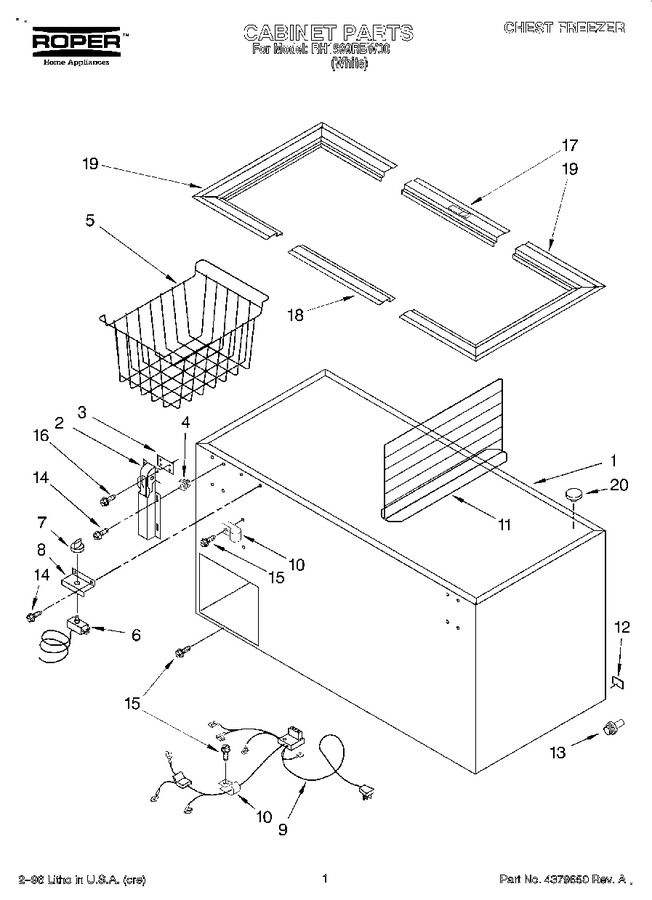

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356490		Hinge Assembly				$ 211.36
3	1-17548-006		Hinge Spacer   (Replaces: 4356369)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356499		Thermostat, Control Bracket		Appelez-nous	-
9	4356507		Wiring, Harness External		Appelez-nous	-
10	488946		Plastic, Clip   (Replaces: 4356328)				$ 18.41
11	4356477		Divider (optional)		Appelez-nous	-
12	4356505		Drain Plug		Appelez-nous	-
13	W11663505		Drain Adaptor   (Replaces: 4356481)				$ 15.45
14	4356491		Screw		Appelez-nous	-
15	W11233072		Screw   (Replaces: 4356496)			Immediately	$ 12.62
16	489181		Screw		Appelez-nous	-
17	4-35011-004		Front, Breaker Strip   (Replaces: 4356378)				$ 75.80
18	4-35010-004		Rear, Breaker Strip   (Replaces: 4356377)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356376)				$ 80.74
20	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
20	4356455		Drain Cap		Appelez-nous	-
20	350942		Enamel, White (13 Oz. Spray Can)				$ 80.69
20	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
20	4356489		Clip, Gasket (60 Per Bag)		Appelez-nous	-
	LIT4356575		Energy Label		Appelez-nous	-
	LIT2165306		Use & Care Guide		Appelez-nous	-
