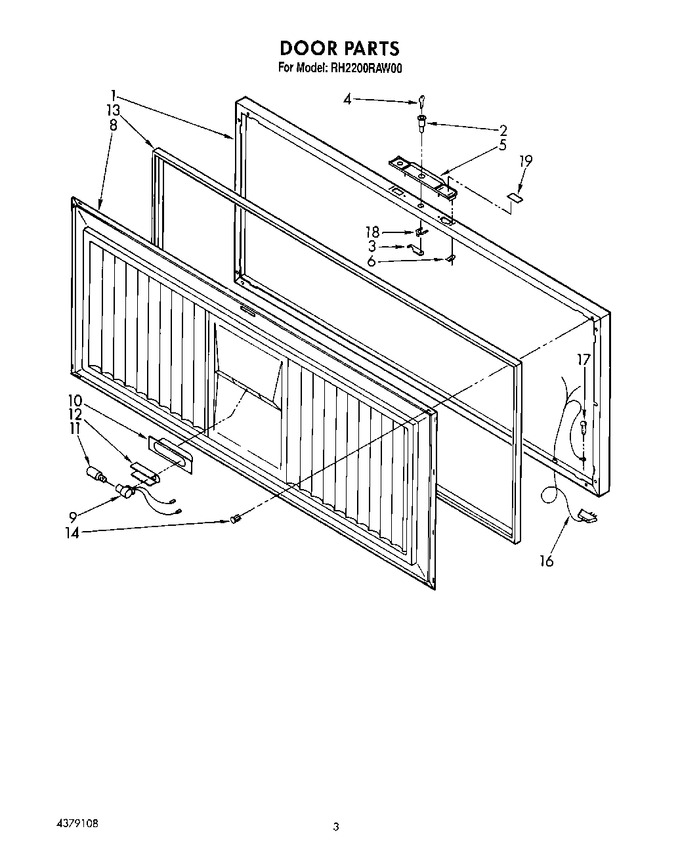

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356466		Exterior, Door Panel (includes Insulation)		Appelez-nous	-
2	4356302		Lock		Appelez-nous	-
3	2-35195-002		Hook Bolt, Lock   (Replaces: 4356303)				$ 57.10
4	4356304		Key		Appelez-nous	-
5	4356374		Handle		Appelez-nous	-
6	4356306		Clip, Oblong				$ 7.36
8	4356308		Interior, Door Panel		Appelez-nous	-
9	4356309		Lamp Socket		Appelez-nous	-
10	3-25693-001		Reflector, Light   (Replaces: 4356310)				$ 15.36
11	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
12	4356312		Heat Shield		Appelez-nous	-
13	4356469		Gasket		Appelez-nous	-
14	4356317		Gasket, Clip Rear		Appelez-nous	-
16	4356468		Wiring Harness, Internal		Appelez-nous	-
17	WP488787		Screw   (Replaces: 488787)				$ 9.52
18	983465		Clip, Spring		Appelez-nous	-
19	4356372		Handle, Insert (2)		Appelez-nous	-
