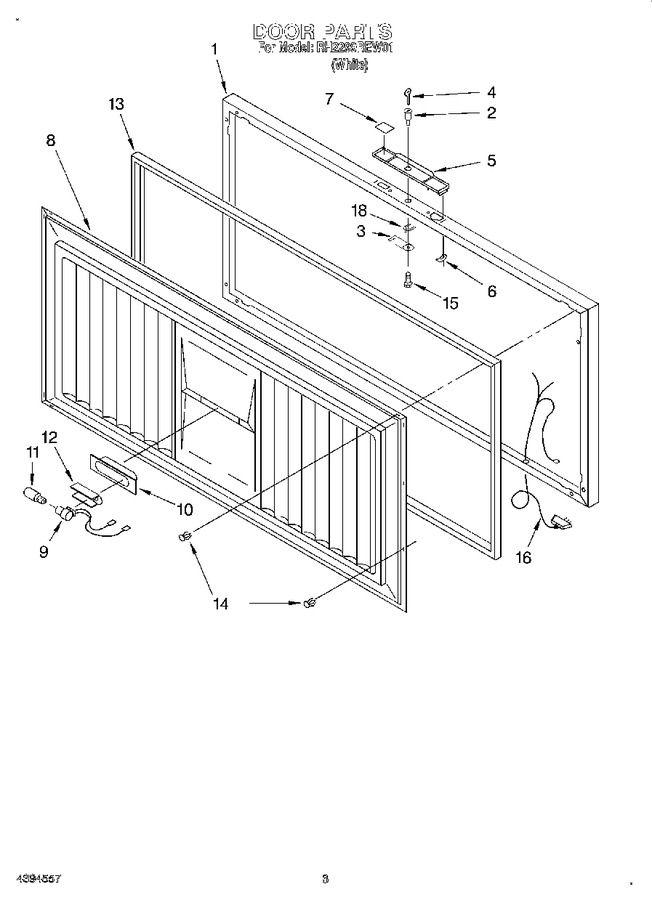

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390903		Exterior Door Panel   (Replaces: 4356639)				$ 446.17
2	4356484		Lock Kit		Appelez-nous	-
3	2-35195-002		Hook Bolt, Lock   (Replaces: 4356608)				$ 57.10
4	4356304		Key		Appelez-nous	-
5	4356483		Handle		Appelez-nous	-
6	4356306		Clip, Oblong				$ 7.36
7	4356372		Nameplate		Appelez-nous	-
8	4356502		Interior, Door Panel		Appelez-nous	-
9	4356309		Lamp Socket		Appelez-nous	-
10	3-25693-001		Reflector, Light   (Replaces: 4356500)				$ 15.36
11	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
12	4356312		Heat Shield		Appelez-nous	-
13	4356503		Gasket		Appelez-nous	-
14	4356317		Clip, Gasket		Appelez-nous	-
15	W11233072		Screw   (Replaces: 4356609)			Immediately	$ 12.62
16	4356640		Wiring Harness, Internal		Appelez-nous	-
18	4356493		Clip, Spring		Appelez-nous	-
