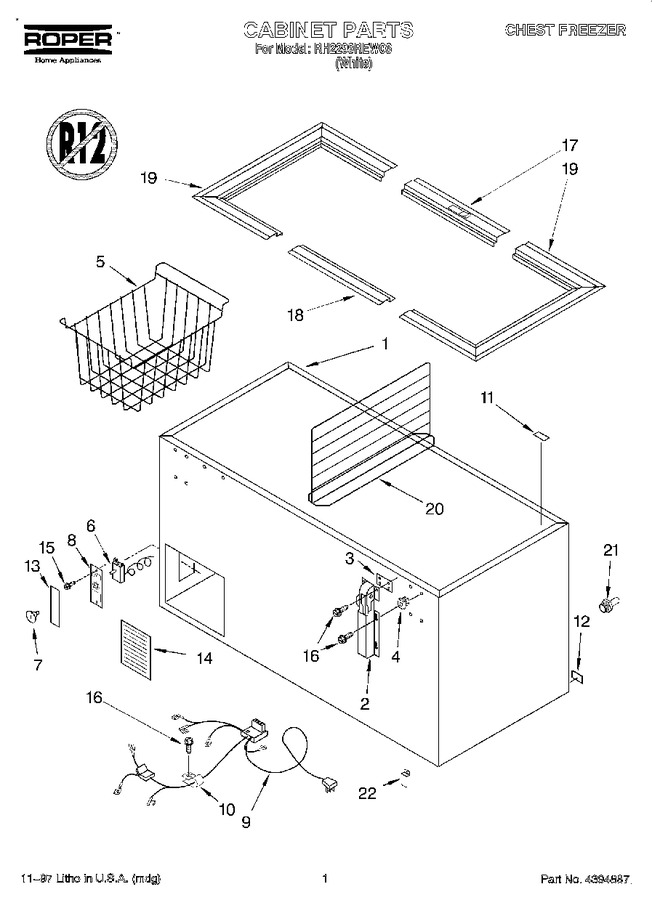

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4356504)				$ 164.89
3	1-17548-006		Hinge Spacer   (Replaces: 4356463)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4356670)				$ 148.16
7	4356585		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4356674)		Appelez-nous	-
9	4356612		Wiring, Harness External				$ 38.50
10	488946		Plastic, Clip   (Replaces: 4356671)				$ 18.41
11	4356456		Drain, Cap		Appelez-nous	-
12	4356605		Drain, Plug		Appelez-nous	-
13	4356584		Insert, Control		Appelez-nous	-
14	4356622		Access Panel				$ 70.79
15	3-24004-049		Screw   (Replaces: 4356583)		Appelez-nous	-
16	4356491		Screw		Appelez-nous	-
17	4356641		Front, Breaker Strip		Appelez-nous	-
18	W11045298		Rear, Breaker Strip   (Replaces: 4356642)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4356635)				$ 80.74
20	4356477		Divider (optional)		Appelez-nous	-
21	W11663505		Adapter, Drain   (Replaces: 4356481)				$ 15.45
22	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
22	4356677		Clip		Appelez-nous	-
22	4356489		Clip, Gasket (kit Of 60)		Appelez-nous	-
22	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
22	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	LIT2165306		Use & Care Guide		Appelez-nous	-
	LIT4356621		Energy Label		Appelez-nous	-
