Diagram for 01 - Cook Top
01 - Cook Top

Diagram for 02 - Door
02 - Door

Diagram for 03 - Control Panel
03 - Control Panel

Diagram for 04 - Oven , Literature And Optional
04 - Oven , Literature And Optional

Diagram for 05 - Section
05 - Section


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 329688 Liner, Door Appelez-nous -
10 WP308499 Palnut   (Replaces: 308499) Special Order $ 6.26

11 307889 Panel, Door (white) Appelez-nous -
11 307895 Panel, Door (harvest Gold) Appelez-nous -
11 307893 Panel, Door (coffee) Appelez-nous -
11 307891 Panel, Door (new Avocado) Appelez-nous -
11 307897 Panel, Door (almond) Appelez-nous -
11 WP308685 Panel, Door (screw, 10a X 1/2 (3))   (Replaces: 253549) In-Stock Immediately $ 7.08

11 WP488627 Panel, Door (screw, 8a X 1/2 (2))   (Replaces: 338156) Special Order $ 6.81

12 311563 Handle, Oven Door Special Order $ 103.11

19 307935 Panel, Lower (white) Appelez-nous -
19 307936 Panel, Lower (new Avocado) Appelez-nous -
19 307937 Panel, Lower (coffee) Appelez-nous -
19 307938 Panel, Lower (harvest Gold) Appelez-nous -
19 307939 Panel, Lower (almond) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

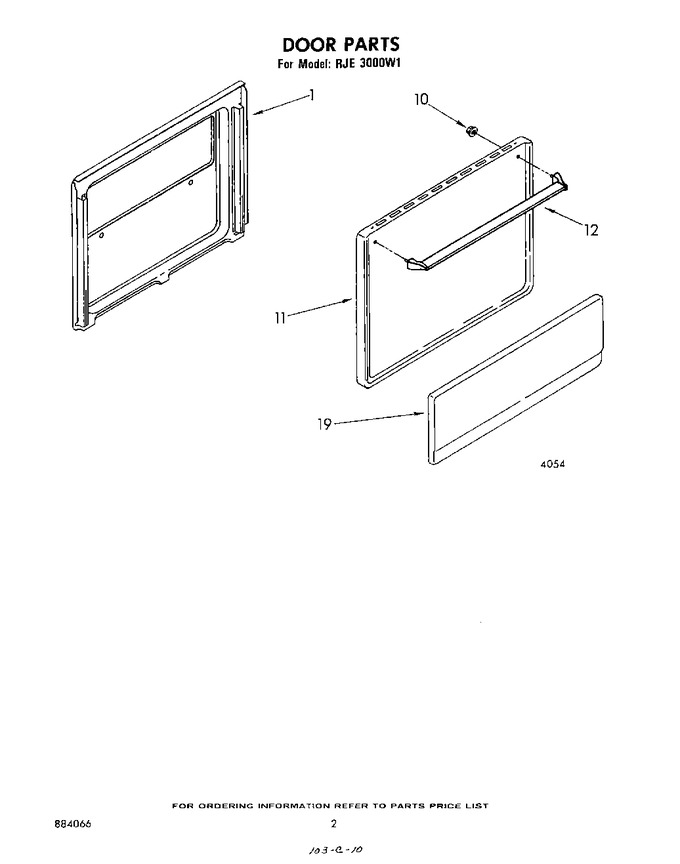

Diagram for RJE3000W1
