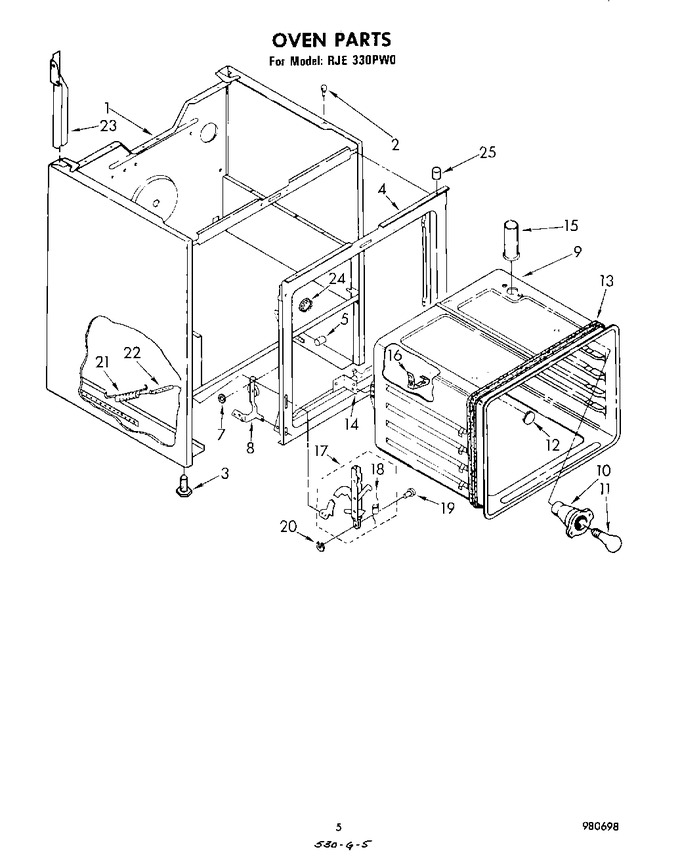

SELECT A DIAGRAM

01 - Cooktop


02 - Door And Drawer, Lit/optional


03 - Control Panel


04 - Oven


05 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329966		Main Chassis (almond)		Appelez-nous	-
1	330094		Main Chassis (platinum)		Appelez-nous	-
1	330093		Main Chassis (toast)		Appelez-nous	-
1	329962		Main Chassis (white)		Appelez-nous	-
1	329963		Main Chassis (new Avocado)		Appelez-nous	-
1	329964		Main Chassis (coffee)		Appelez-nous	-
1	329965		Main Chassis (harvest Gold)		Appelez-nous	-
2	238614		Bumper (2)				$ 72.68
3	WPW10058460		Foot, (4)   (Replaces: 312701)			Immediately	$ 7.07
4	WP681414		Screw, 10-16 X 1/2 (13)   (Replaces: 343641)			Immediately	$ 7.07
4	327886		Frame, Front		Appelez-nous	-
5	307985		Pin, Hinge (2)				$ 29.54
7	308306		Pushnut (2)		Appelez-nous	-
8	327891		Hinge (l.h.)		Appelez-nous	-
8	WP681414		Screw, 10-32 (4)   (Replaces: 343631)			Immediately	$ 7.07
8	327890		Hinge (r.h.)		Appelez-nous	-
9	311056		Screw (3)		Appelez-nous	-
9	329001		Oven (30`` Continuous Clean)		Appelez-nous	-
10	310208		Socket, Light (oven) (alternate)			Immediately	$ 36.34
10	308043		Socket, Light (oven) (screw, 10-12 X 7/8 (2))		Appelez-nous	-
10	307856		Socket, Light (oven) (alternate)		Appelez-nous	-
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
12	257314		Plug Button		Appelez-nous	-
13	309107		Seal, Oven				$ 63.50
14	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
14	311220		Bracket, Oven (mounting)		Appelez-nous	-
15	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
15	307960		Vent, Oven		Appelez-nous	-
16	98005642		Clip, Therm Bulb (2)   (Replaces: 258139)			Immediately	$ 74.64
17	329712		Channel, Arm (2)		Appelez-nous	-
18	308207		Spring, Door Stop (2)		Appelez-nous	-
19	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
20	307594		Ring, Retainer (2)		Appelez-nous	-
21	308127		Spring, Oven Door (2)				$ 11.75
22	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
23	308131		Support, Channel (r.h.)		Appelez-nous	-
23	308132		Support, Channel (l.h.)		Appelez-nous	-
23	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
24	308535		Plug Button		Appelez-nous	-
25	310210		Screw, 8-32 X 5/16 (2)		Appelez-nous	-
25	311909		Locator, Cooktop (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
